| Brand Name: | SMX |
| Model Number: | MX-PL95000U |
| MOQ: | 1pc |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000pcs/monthly |

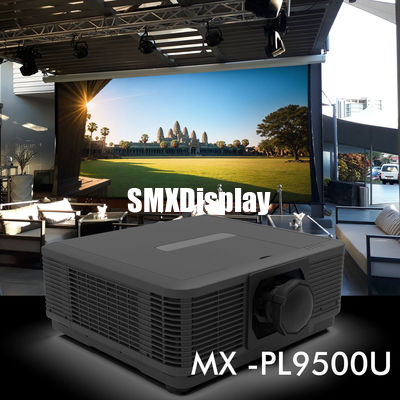

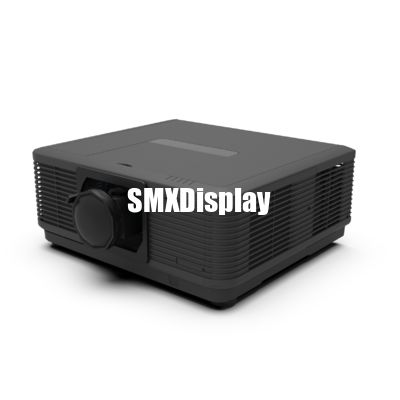

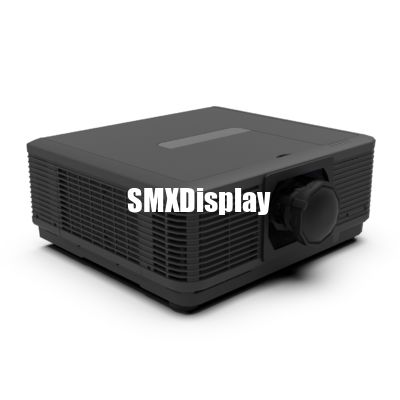

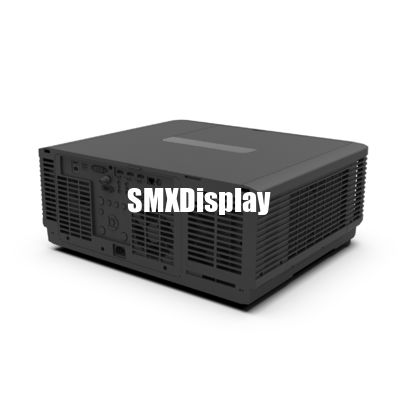

9500 Lumen Dual-Color Laser Projector 3LCD Large Venue Projector
| Key Parts | ||
| Mode No. | MX- PL9500U | |
| Brightness(Ansi Lumen) | 9500 | |
| Resolution | WUXGA | |
| Overall Spec | ||
| Display Device | Display Technology | 3LCD (3*0.64") |
| Native Resolution | WUXGA(1920 x 1200) | |
| Light source Lifetime |
Normal mode | 20000hrs |
| Projection Lens | Zoom/Focus type | Manual |
| Throw Ratio (optional lens) | 1.08-1.76 | |
| F#(Wide-Tele) | 1.58-2.02 | |
| f(mm) | 15.3-24.6 | |
| Screen size | 30-300" | |
| Lens Shift | V: +45%~0% H:±21% |
|
| CR | Contrast Ratio | 5000000:1 |
| Noise | Noise(dB) | Normal: 39dB Long life: 39dB Quietness: 32dB |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 |
| I/O Terminal | ||
| Input | HDMI IN | *2 (HDMI 2.0) |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| 3G-SDI | *1(Optional) | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | HDMI OUT | *1 (HDMI 2.0) |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| DMX512 | *1 | |
| General Spec | ||
| Signal input parameter | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~120Hz | |
| Video signal input | up to 4K @ 60Hz | |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| ECO Standby Power | <0.5W | |
| Power Consumption (Normal) -Standard |
755W | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
H/V keystone 4 Corner Correction Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control--AMX Discovery | Yes | |
| LAN Control--PJ Link | Yes | |
| Dimension&Weight | ||
| Product Size (WxDxH mm) |
490x510x205 | |
| Net. Weight (kg) | ~18.5 | |
| Accessory | ||
| Standard accessories | Power Cord, Remote, HDMI Cable | |
