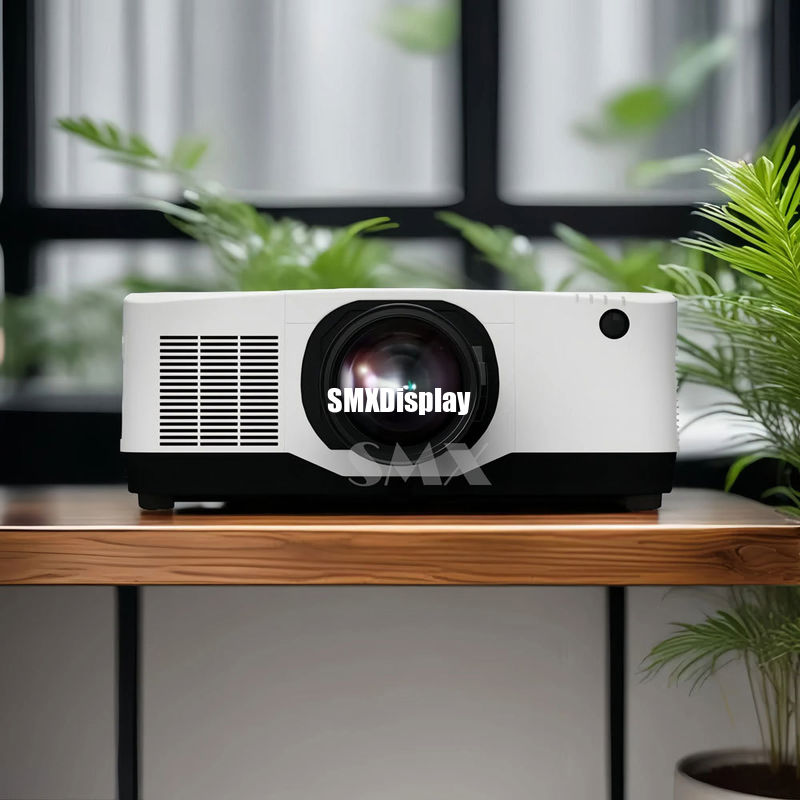

20000 Lumen Laser Projector Ultra-Bright Performance for Large Venues

Brand Name:	SMX
Model Number:	MX-X20000U
MOQ:	1
Packaging Details:	Carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Document:

Product Name:

3LCD Laser Projector

Birghtness:

20000 Lumen

Resolution:

1920 X 1080

Normal Mode:

20000hrs

Keystone:

Inputs:

HDMI, VGA, USB, Ethernet

Display Type:

Lan Control:

Supply Ability:

100000pcs/monthly

Product Description

20000 Lumen Laser Projector Ultra-Bright Performance for Large Venues

The 20,000 Lumen Laser Projector is built for high-impact projection in the most demanding environments. Designed to deliver ultra-bright, razor-sharp visuals, this powerhouse projector features an advanced laser light engine and supports WUXGA resolution (depending on model), making it ideal for large venues, auditoriums, outdoor events, and immersive installations.

Whether you're projecting onto massive screens or unconventional surfaces, this projector ensures stunning clarity, vibrant color reproduction, and consistent performance—even in bright ambient light.

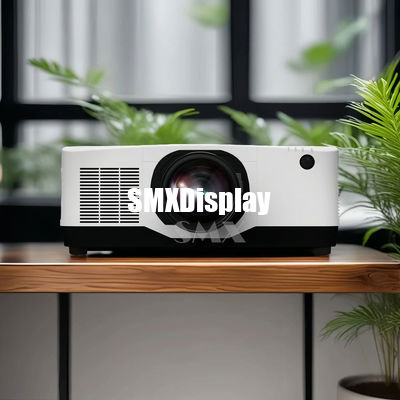

20000 Lumen Laser Projector Ultra-Bright Performance for Large Venues 0

Key Features:

Ultra-High Brightness (20,000 Lumens)
Exceptional visibility in large venues and well-lit spaces.
High Resolution WUXGA
Delivers sharp, detailed images with true-to-life color accuracy.
Laser Light Source
Maintenance-free operation with up to 20,000 hours of consistent brightness and performance.
Edge Blending & Warping Support
Ideal for projection mapping, curved surfaces, and multi-projector setups.
Flexible Installation
Supports 360° orientation, motorized lens shift, zoom, and a wide range of lens options.
Advanced Connectivity
Compatible with HDBaseT, HDMI, 3G-SDI, and network control systems for seamless integration.

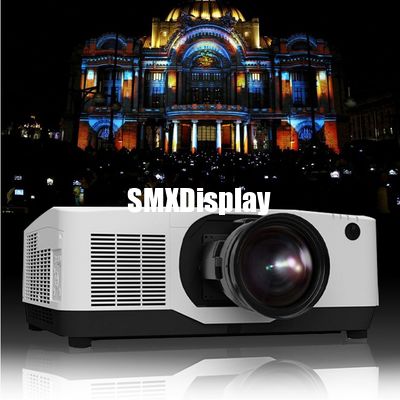

20000 Lumen Laser Projector Ultra-Bright Performance for Large Venues 1

HDBT Connection

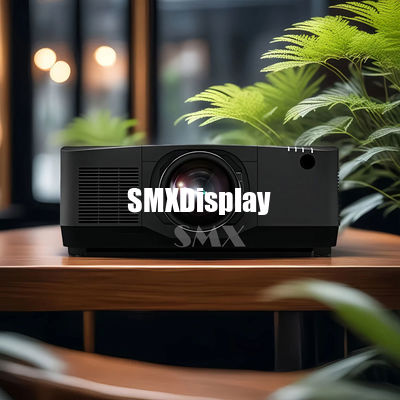

20000 Lumen Laser Projector Ultra-Bright Performance for Large Venues 2

LAN Control

20000 Lumen Laser Projector Ultra-Bright Performance for Large Venues 3

Specification:

Mode
	Model#	MX-X20000U
	Brightness(Lumen)	20,000
Overall Spe
Panel	Display Panel	3x1.0"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode	20000hrs
Laser Lifetime	ECO mode	30000hrs
Projection Lens (STD)	Len Model	MX-EG12ZLM
	Zoom/Focus	Motorized
	Throw Ratio (16:10)	1.24-2.01 @100inch
	F	1.8-2.24
	f	27.7-44.3mm
	Zoom Ratio	1.62
	Screen size	60-500 inch
	Lens Shift V	±65%
	Lens Shift H	±25%
CR	Contrast Ratio(Min)	3,000,000:1
Noise	Noise(dB)	Full:46db / Normal:44db / Eco1:43db / Eco2:42db
Uniformity	Uniformity	TYP:90%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1(Display)
	RJ45	*1(Display)
	DVI-D	*1
	HD BaseT	*1
	Audio in(mini jack,3.5mm)	*1 (VGA/DVI-D share)
	DMX512	*1
Output	HDMI 1.4(OUT)	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Function
Keystone	Keystone Correction	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Others	360° projection	360° Install
	Edge Blending	Yes
	Adjustable brightness	Yes
	Lens position memory, lens locking function	Yes

Support a variety of optional lenses, flexible installation

A variety of optional lenses are suitable for different projection spaces and solutions to meet the different projection needs of customers.

Model#		MX-EG05ZLM	MX-EG06ZLM	MX-EG08ZLM	MX-EG12ZLM	MX-EG20ZL	OL-EG39ZLM
Image circle		Φ34.6	Φ35.5	Φ37.9	Φ37.9	Φ37.9	Φ37.9
Lens Type		Zoom Lens ST3	Zoom Lens ST2	Zoom Lens ST1	Zoom Lens STD	Zoom Lens L1	Zoom Lens L2
Zoom/Focus		Motorized	Motorized	Motorized	Motorized	Motorized	Motorized
F#(Wide-Tele)		1.85-2.20	1.84-2.25	1.80-2.24	1.80-2.24	1.84-2.58	1.85-2.42(TBD)
f(mm)		12.0-14.6	14.4-19.1	19.0-27.6	27.7-44.3	43.8-86.0	86.8-163.5(TBD)
Throw ratio(16:10)		0.53-0.65	0.65-0.87	0.86-1.25	1.24-2.01	1.98-3.95	3.95-7.50(TBD)
Zoom Ratio		1.23	1.34	1.45	1.62	1.99	1.90(TBD)
Lens shift	H	±20%	±20%	±25%	±25%	±25%	±25%
Lens shift	V	±50%	±55%	±65%	±65%	±65%	±65%
Screen Size		60-500inch	60-500inch	60-500inch	60-500inch	60-500inch	60-500inch

Len Shift

Lens shift allows you to adjust the projector's image position vertically or horizontally without tilting the unit, preventing distortion (keystone effect) and enabling flexible placement while maintaining image quality. This is especially useful for ceiling mounts or uneven setups.

20000 Lumen Laser Projector Ultra-Bright Performance for Large Venues 4

Ideal Applications:

Large auditoriums and conference halls
Outdoor projection and public displays
Museums, domes, and immersive environments
Houses of worship and performance venues
Simulation and visualization systems

20000 Lumen Laser Projector Ultra-Bright Performance for Large Venues 5
