Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector

Brand Name:	SMX
Model Number:	MX-X12000U
MOQ:	1
Packaging Details:	Carton / Flight
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE,RoHS

Document:

Product Name:

12000 Lumen Laser Projector

Display Type:

Light Source Type:

Laser Technology

Power Supply:

100-240V AC

Control:

Remote

Uniformity:

Lifetime:

Laser 30000 Hors

Projection Method:

Front ,Rear ,Ceiling

Color:

White/Black

Applictaion:

3D Mapping

Supply Ability:

10000pcs/monthly

Product Description

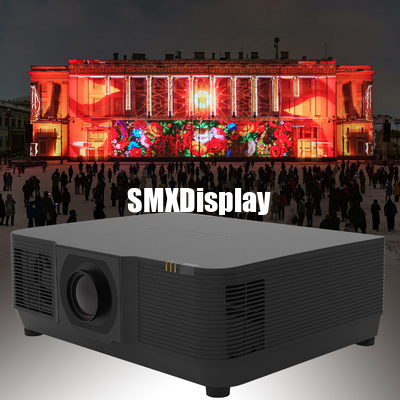

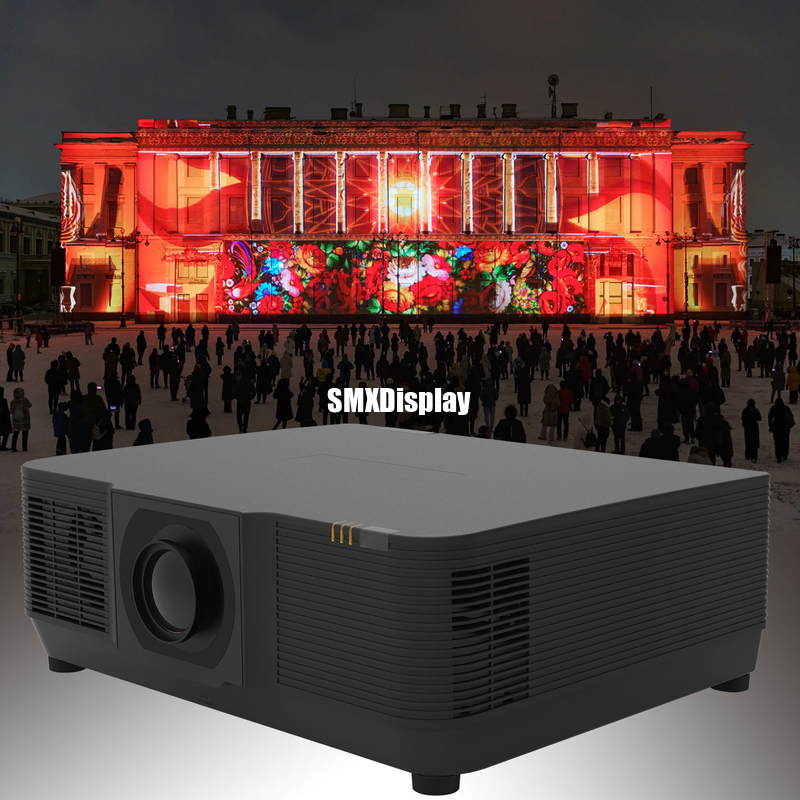

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector

Experience unparalleled brightness, vibrant colors, and long-lasting performance with our cutting-edge 12000 Lumen 3LCD Laser Projector. Designed for demanding large-venue environments, this projector delivers stunning visuals that captivate and engage.

Unleash the full potential of your visual presentations with the 12000 Lumen 3LCD Laser Projector – a powerful, reliable, and versatile solution for the most demanding projection needs.

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 0

Key Features

Exceptional Brightness: With 12,000 lumens, images stay vivid even in bright conditions.
Advanced Technology: 3-chip LCD eliminates the "rainbow effect," delivering rich colors and accuracy.
Laser Light Source Benefits: Long-lasting Reliability: Up to 30,000 hours of maintenance-free operation.
1. Instant On/Off: Quick setup and shutdown with no warm-up time.
2. Consistent Quality: Maintains brightness and color uniformity over time.
3. High Resolution: WUXGA (1920 x 1200) for sharp, detailed images

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 1

Flexible Installation

360-degree projection capabilities

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 2

Interchangeable lenses for various distances

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 3

Powered lens shift, zoom, and focus for precise positioning

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 4

Keystone Correction

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 5

Advanced Connectivity

Multiple inputs, including HDMI, VGA, RS232, Video, Audio In/Out, HD Base, and RJ45, ensure compatibility with diverse devices.

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 6

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 7

Ideal Applications:

Perfect for auditoriums, digital signage, experiential events, corporate presentations, houses of worship, and training simulations.

Immerse Your Audience: The 12000 Lumen 3LCD Laser Projector 8

Specification:

Model
	Model	MX-X10000U
Brightness
	Brightness (ANSI Lumens )	10000lumen
	Light source	Laser
Overall Spec
Panel	Display Panel	3x0.76"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Life time	Normal mode	20000hrs
Light source Life time	ECO mode	20000hrs
Projection Lens	Len Type	Zoom Lens
	Zoom/Focus	Manual
	Throw Ratio(16:10)	1.46-2.95
	F#(Wide-Tele)	1.7~2.37
	f(mm)	24.4-48.6
	Zoom Ratio	2
	Screen size	40-500 inch
	Weight	Approx 0.8kg
	Lens Shift V	+50%,-10%
	Lens Shift H	±20%
CR	Contrast Ratio(Min)	100000:1
Noise	Noise(dB)	Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB
Uniformity	Uniformity(Actual Min) -JISX6911	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1(5V/1.5A)
	USB-B	*1(Display)
	RJ45	*1(Display)
	DVI-D	*1
	HD BaseT	*1
	HD-SDI(3G-SDI)	Optional
	Audio in (mini jack,3.5mm)	*1 (VGA/DVI-D share)
Output	VGA	*1
	HDMI 1.4(OUT)	*1
	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Others	360° projection	360° omnibearing installation
Others	Edge Blending	Yes
