12,000 Lumen High-Brightness Laser Projector for 3D Mapping & Projection Mapping

Brand Name:	SMX
Model Number:	MX-X12000U
MOQ:	1
Packaging Details:	Carton
Payment Terms:	,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE, ROHS

Document:

Product Name:

Laser Projector

Brightness:

12000 Lumen

Resolution:

1920 X 1080

Display Type:

Light Source:

Laser

Connectivity:

HDMI, VGA, USB, Ethernet

Laser Life Time:

20,000-30,000 Hours

Len Type:

Motorized/Manual Lens

Keystone Correction:

Contrast:

100000:1

Applictaion:

3D Mapping

Projection Size:

Up To500 Inch

Supply Ability:

10000pcs/monthly

Product Description

12,000 Lumen High-Brightness Laser Projector for 3D Mapping & Projection Mapping

Experience unparalleled brightness, vibrant colors, and long-lasting performance with our cutting-edge 12000 Lumen 3LCD Laser Projector. Designed for demanding large-venue environments, this projector delivers stunning visuals that captivate and engage.

12,000 Lumen High-Brightness Laser Projector for 3D Mapping & Projection Mapping 0

Specification

Model
	Model	MX-X10000U
Brightness
	Brightness (ANSI Lumens )	10000lumen
	Light source	Laser
Overall Spec
Panel	Display Panel	3x0.76"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Life time	Normal mode	20000hrs
Light source Life time	ECO mode	20000hrs
Projection Lens	Len Type	Zoom Lens
	Zoom/Focus	Manual
	Throw Ratio(16:10)	1.46-2.95
	F#(Wide-Tele)	1.7~2.37
	f(mm)	24.4-48.6
	Zoom Ratio	2
	Screen size (Performance guarantee range)	40-500 inch (40-200 inch)
	Weight	Approx 0.8kg
	Lens Shift V	+50%,-10%
	Lens Shift H	±20%
CR	Contrast Ratio(Min)	100000:1
Noise	Noise(dB)	Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB
Uniformity	Uniformity(Actual Min) -JISX6911	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal

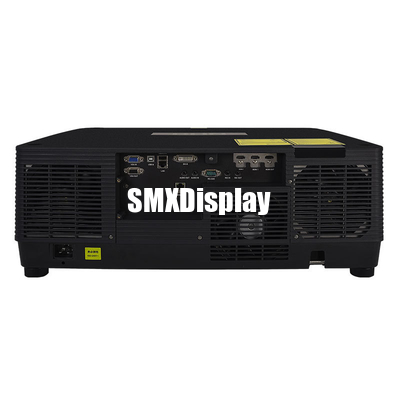

Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1(5V/1.5A)
	USB-B	*1(Display)
	RJ45	*1(Display)
	DVI-D	*1
	HD BaseT	*1
	HD-SDI(3G-SDI)	Optional
	Audio in (mini jack,3.5mm)	*1 (VGA/DVI-D share)
Output	VGA	*1
	HDMI 1.4(OUT)	*1
	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Others	360° projection	360° omnibearing installation
Others	Edge Blending	Yes

Lenses

Key Features:

Exceptional Brightness: With a powerful 12,000 lumens of both color and white brightness, this projector ensures images remain vivid and clear even in brightly lit spaces, overcoming ambient light with ease.
Superior 3LCD Technology: Utilizing advanced 3-chip LCD technology, it continuously displays 100% of the RGB color signal for every frame, eliminating the "rainbow effect" and delivering an expansive color gamut with incredible accuracy.
Laser Light Source: The solid-state laser light source provides a host of benefits, including:
- Long-lasting Reliability: Enjoy up to 20,000 to 30,000 hours of virtually maintenance-free operation, significantly reducing the total cost of ownership by eliminating lamp replacements.
- Instant On/Off: No more waiting for lamps to warm up or cool down, allowing for quick setup and shutdown.
- Consistent Brightness & Color: Laser technology ensures consistent brightness and color uniformity over the projector's lifespan.

12,000 Lumen High-Brightness Laser Projector for 3D Mapping & Projection Mapping 2

High Resolution: Available in resolutions such as WUXGA (1920 x 1200), supports 4K (3840 x 2160) input, delivering incredibly detailed and sharp images, perfect for displaying intricate graphics, videos, and data.
Outstanding Contrast Ratio: A high contrast ratio, often exceeding 100,000:1, produces deep blacks and bright whites, revealing subtle details in both dark and light scenes.
Flexible Installation:
- 360-Degree Projection: Project in any direction—horizontally, vertically, or rotationally—for dynamic and immersive installations.
- Powered Lens Shift, Zoom, and Focus: Motorized controls for vertical and horizontal lens shift, zoom, and focus allow for precise image positioning without moving the projector itself.
- Interchangeable Lenses: A wide range of optional lenses, including ultra-short-throw options, provides versatility to suit various throw distances and venue sizes.
Advanced Connectivity: Equipped with a comprehensive array of inputs, including HDMI, DVI-D, HDBaseT, USB, VGA, RJ45, RS232, and LAN Control, ensuring compatibility with a diverse range of devices and professional setups. Many models also support 4K input.

12,000 Lumen High-Brightness Laser Projector for 3D Mapping & Projection Mapping 3

Image Enhancement Features: Built-in features like Edge Blending, Image Warping, Curved-Surface Correction, and Geometry Correction enable seamless multi-projector installations and optimized image quality for diverse surfaces.

12,000 Lumen High-Brightness Laser Projector for 3D Mapping & Projection Mapping 4

Robust and Durable Design: Engineered for continuous operation in demanding environments, often featuring dust-resistant optical blocks and efficient cooling systems for enhanced longevity and stable performance.

Ideal Applications:

Large Venues: Auditoriums, concert halls, theaters, and lecture halls.
Digital Signage & Art Installations: Captivating displays in museums, galleries, and public spaces.

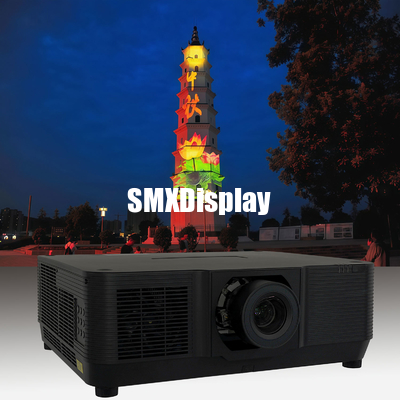

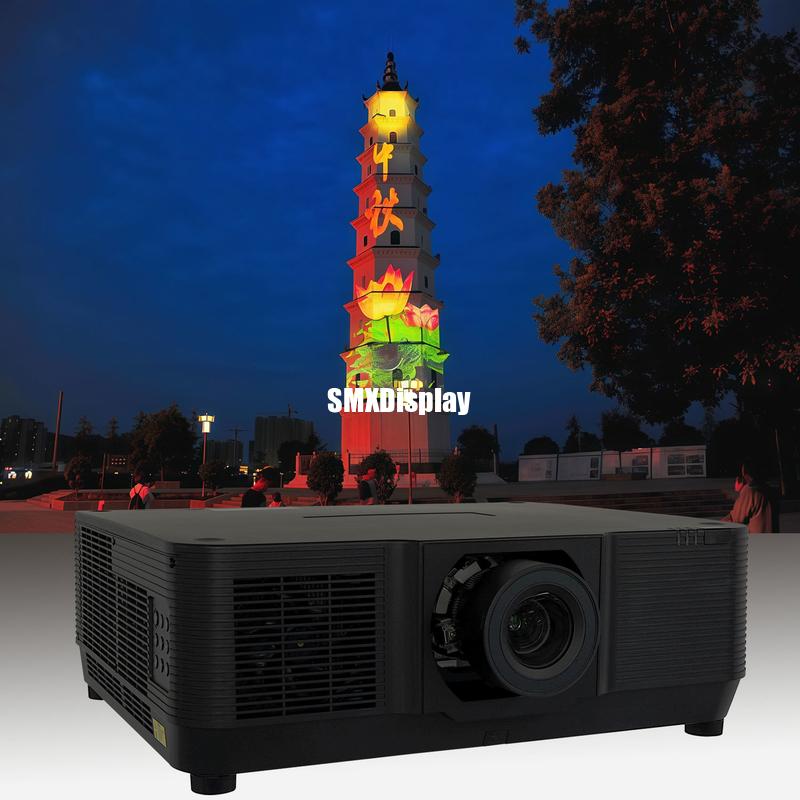

Mapping & Experiential Events: Projection mapping onto complex surfaces, creating immersive visual experiences.
Conference Rooms & Boardrooms: High-impact presentations in large corporate settings.
Houses of Worship: Delivering clear and bright visuals for large congregations.
Simulation & Training: Providing realistic and detailed imagery for training simulators.

12,000 Lumen High-Brightness Laser Projector for 3D Mapping & Projection Mapping 5

12,000 Lumen High-Brightness Laser Projector for 3D Mapping & Projection Mapping 6

Tags:

20K Lumen 3D Mapping Building Projector 20000 Lumen Highest Brightness LCD Laser Projector for Outdoor Large Venue Immersive Projection
