Outdoor Building 3D Video Mapping Projection 15000 Lumen Laser Projector

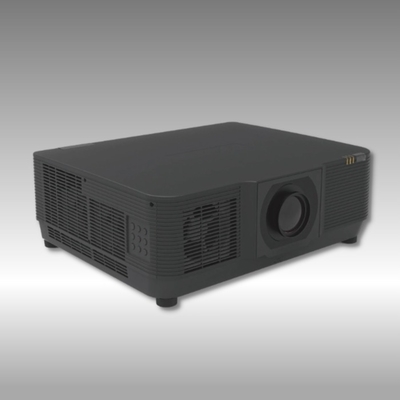

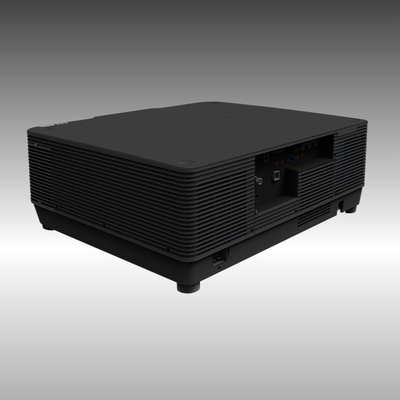

The SMX MX-X15000U is a 3LCD laser engineering projector with 15,000 lumen, ideal for 3D Mapping and outdoor large venue projection. This model offers high brightness and high color reproduction with the new 3LCD and laser light optical engine. Newly designed cooling system with sealed optical engine and filter-less design provides high perfomance and low fan noise. The MX-X15000U is a versatile installation projector with advanced keystone correction, 360° installation capability and a full suite of optional lenses.
Key Features:
Application:
Specification
| Model No. | MX-X15000U | |
| Brightness | ||
| Brightness ( Ansi Lumens ) |
15000lumen | |
| Light source | Laser | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.76" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Lifetime |
Normal mode | 20000hrs |
| ECO mode | 20000hrs | |
| Projection Lens | Len Type | Zoom Lens |
| Zoom/Focus | Manual(Standard Len) | |
| Throw Ratio(16:10) | 1.46-2.95 | |
| F#(Wide-Tele) | 1.7~2.37 | |
| f(mm) | 24.4-48.6 | |
| Zoom Ratio | 2 | |
| Weight | Approx 0.8kg | |
| Lens Shift V | +50%,-10% | |
| Lens Shift H | ±20% | |
| CR | Contrast Ratio(Min) | 100000:1 |
| Noise | Noise(dB) | Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal |

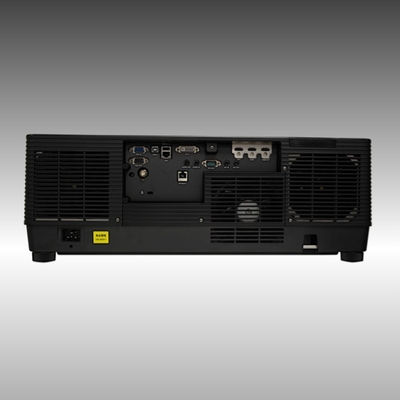

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 (5V/1.5A) | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | Optional | |
| Audio in (mini jack,3.5mm) |
*1 (VGA/DVI-D share) | |
| Output | VGA | *1 |
| HDMI 1.4(OUT) | *1 | |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Others | 360° projection | 360° Omni bearing installation |
| Edge Blending | Yes | |
| Dimension&Weight | ||
| MAX Dimensions (WxHxD mm) |
600*218*503 | |
| Net. Weight (KG) | ~25kg | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord(3m,Black), Remote control | |
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement. Optical zoom, lens movement, installation and debugging are more convenient.
360° Flexible Projection
The SMX MX-X15000U supports 360° all sides projection, and the image can be losslessly panned through the menu. Users can easily adjust the position of the projected image.
WUXGA (1920x1200) Resolution
WUXGA resolution (1920x1200 pixels) can present high-definition video images. The technology can still maintain clear and vivid details when projected on a large screen, giving users a vibrant visual experience.
High Contrast
SMX projector high contrast ratio provides a more vivid and immersive visual experience, ideal for movies, games and multimedia presentations. With high contrast, details in an image are easier to discern, especially subtle differences between shadows and highlights, making the image more three-dimensional.
Edge Blending Function
The edge blending function allows multiple projectors to splice together a complete picture, achieving seamless connection, ultra-large screen, bright and vivid, high-resolution effects.
Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.

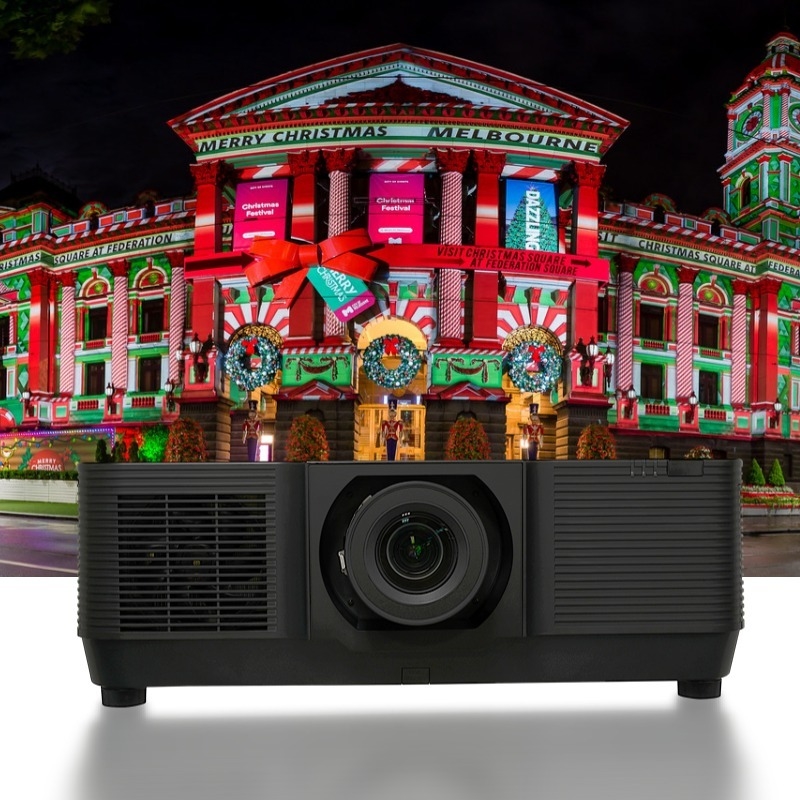

Why use architectural projection?
Using excellent projection tools like street projection, project mapping, and guerrilla projection, you can reach new consumers you never thought possible. A key reason to use architectural projection is its flexibility. The content can be altered and adapted to fit any surface. This type of advertising can be projected onto any building.
