| Brand Name: | SMX |
| Model Number: | MX-VL820U |
| MOQ: | 1Pc |
| Price: | 3117usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/monthly |

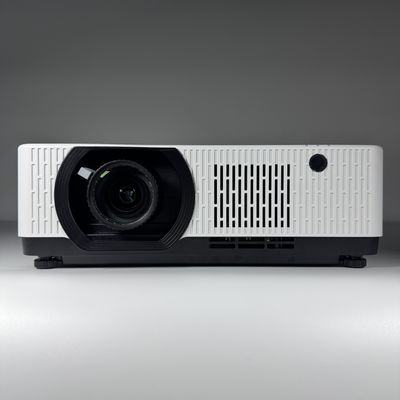

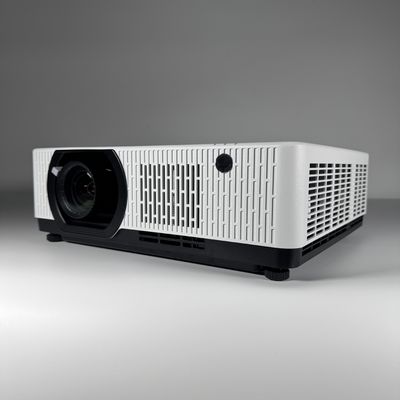

SMX 8200 Lumen 3LCD High Brightness Laser Projector For Immersive Projection
The SMX's MX-VL820U is a high-brightness laser projector with 8200 lumens brightness, designed for commercial, educational and public spaces. With a lifespan of up to 30,000 hours, it can project ultra-large screens up to 300 inches in WUXGA resolution. Equipped with features such as H/V lens shift, 1.6x optical zoom, advanced keystone correction and 360° projection function, this projector provides flexible setup options. In addition, comprehensive LAN control ensures seamless integration into existing device management networks.
Key Features:
Application Area:
Bright images for large venues
With an output brightness of 8200 ANSI lumens, SMX's MX-VL820U projector delivers vivid, clear projections in all lighting conditions, making it ideal for conference rooms, lecture halls, galleries, simulation venues and other large spaces.
Fits Any Environment
The SMX's MX-VL820U features tool-free lens shift control, 1.6x optical zoom, H/V ±30° keystone correction, 6-corner geometry correction and 4-corner adjustment options to adjust the image without shifting, ensuring it fits in any environment.
WUXGA Native Resolution
WUXGA resolution can present high-definition video images. The technology can still maintain clear and vivid details when projected on a large screen, giving users a vibrant visual experience.
LAN Control Function
The SMX's MX-VL820U projector is compatible with Crestron, PJ Link, and AMX Discovery, making device management more efficient and flexible. By using network-based LAN controls, users can transcend the physical limitations of projectors’ locations and spaces while decreasing administrative and managerial costs.
Specification
| Model No. | MX-VL820U | |
| Brightness(Lumen) | 8200 | |
| Resolution | WUXGA | |
| Light source | NICHIA LASER | |
| Overall Spec | ||
| Panel | Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time | Full Normal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| ECO2 mode | 30000hrs | |
| Projection Lens | F | 1.58-2.02 |
| f | 15.3mm-24.6mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.08 (wide)-1.76 (tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:＋45%～0%, H:±21% |
|
| CR | Contrast Ratio (FOFO) |
5000000:1 |
| Noise | Noise(dB) *1 | 39dB(Normal) 31dB(ECO1) 29dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

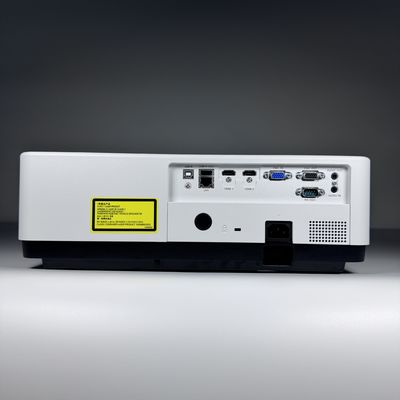

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| HD BaseT | *1(Optional) | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
425 | |
| Power Consumption (ECO1) (Max) |
285 | |
| Power Consumption (ECO2) (Max) |
235 | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m, Ambient 0°C~50°C |
| 1700m＜Altitude＜3000m, Ambient 0°C~40°C |
||
| Operating humidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control--AMX Discovery | Yes | |
| LAN Control--PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5 minutes no signal as default) | |
| Picture mode | Dynamic,Standard,Cinema, Colorboard,sim-DICOM,Blackboard(Green) |
|
| Cooling time | 0s,normal,30s | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | 360° projection | Yes |
| Edge Blending | Yes | |
| Dimension&Weight | ||
| Product Size (mm) | 405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord, HDMI cable,Remote control | |
