3LCD Laser Projector

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology

All Category

3D Projection Mapping Projector

Immersive Projection Projector

DLP Laser Projector

Miss. May Wei

may@smxdisplay.com

+86 18923801593

+86 18923801593

Contact Now

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology

Brand Name:	SMX
Model Number:	MX-STD5500UG
MOQ:	1pc
Price:	1580usd/pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE,RoHS

Document:

Brightness:

5500lm

Contrast Ratio:

5000,000:1

Resolutioin:

WUXGA ( 1920x1200)

Light Source:

Laser

Projection Size:

30-300"

Zoom Ratio:

Supply Ability:

10000pcs/Monthly

Highlight:

5500 Lumens 4k 3lcd projector

WUXGA Resolution 4k 3lcd projector

5500 Lumens 3lcd short throw projector

Product Description

SMX MX-STD5500UG Standard Throw Laser Projector with 5500 Lumens Brightness and WUXGA Resolution

The SMX MX-STD5500UG 5500 Lumen Laser Projector is a powerful projection solution that combines high brightness with the precision of laser technology, delivering exceptional visual experiences across various settings.

Key Features:

5500 Lumens Brightness:

The projector's high brightness output of 5500 lumens ensures clear and vivid images even in well-lit environments.

WUXGA Resolution:

WUXGA resolution provides high clarity and detailed images, making it suitable for applications where sharp and crisp visuals are important.

Laser Technology:

Utilizing advanced laser light source technology, the projector provides long-lasting performance, color accuracy, and reliability for consistent image quality.

Sharp and Detailed Projection:

With a high-resolution display, the projector delivers sharp, crisp images with intricate details, making it ideal for presentations, movies, and more.

Versatile Connectivity:

Equipped with a range of input ports, the projector supports seamless connection to various devices such as laptops, Blu-ray players, and more.

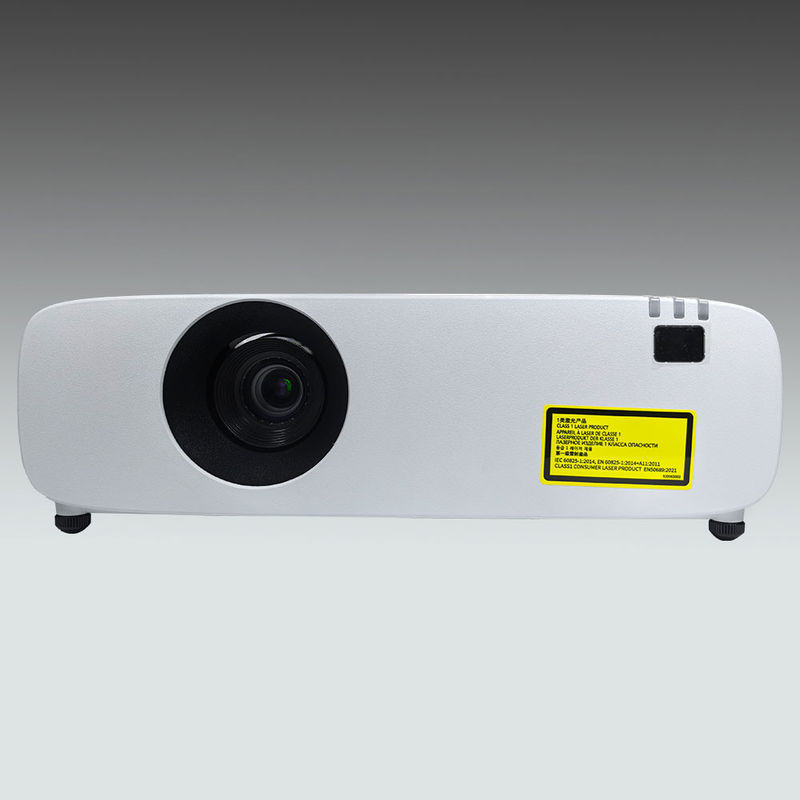

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology 0

Specification

Model No.	MX-STD5500UG
Brightness
	Brightness (Ansi Lumen)	5500
	Resolution	WUXGA
Overall Spec
Light source Lifetime	Light Source	Laser
	Normal mode	20000hrs
	ECO1 mode	30000hrs(TBD)
Projection Lens	Lens Vendor	RICOH
	F	1.5~2.08
	f	17.2~27.7mm
	Zoom/Focus	Manual
	Throw Ratio	1.2~2.0:1
	Zoom Ratio	1.6x optics
	Len Shift	V:＋35%～0%
	Screen size	30-300 inch
CR	Dynamic Contrast Ratio	5000,000:1
Noise	Noise(dB)	37dB(Normal) 27dB(ECO1)
Uniformity	Uniformity	80%
AR	Aspect Ratio	16:10 (Standard)/4:3(Compatible)
Terminal(I/O port)
	Input	VGA, HDMI 2, Video, Audio in 2, USB-A, USB-B, RJ45
	Output	VGA, Audio out
	Control	RS232, RJ45, USB-B, LAN
General Spec
Audio	Speaker	16W*1
Power Consumption	Power Requirements	100~240V@ 50/60Hz
Other Functions
Keystone	Keystone Correction (Lens@center)	V: ±30° / H:±30° Pincushion / Barrel / 4 Corner / 6 Corner Geometry Correction / Grid Image Tune
LAN Control	LAN Control	Yes
SW Setting	Auto Setup	INPUT SEARCH, AUTO PC, Auto Keystone
	Auto Ceiling	Yes
	360° projection	Yes
Dimension&Weight
	Product (WxDxH mm)	390294127
	Net. Weight (KG)	5Kg
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord Remote control

5000000:1 High Contrast

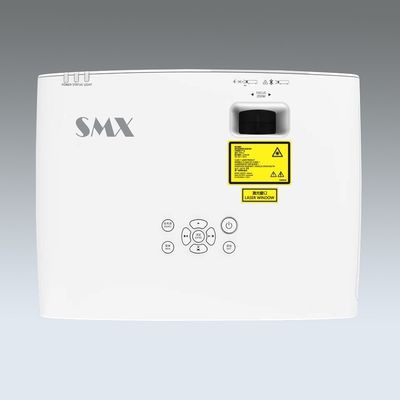

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology 1

Speaker

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology 2

Len Shift

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology 3

Keystone Correction

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology 4

LAN Control

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology 5

Product Ports

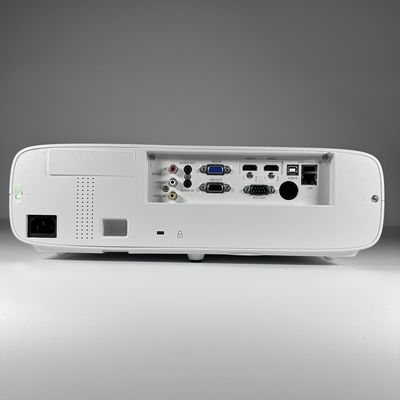

5500 Lumens WUXGA Resolution 3LCD Laser Projector With Advanced Laser Technology 6
