7800 Lumen 26 Languages 3LCD 4k Projector With 300 Inch Screen

Brand Name:	SMX
Model Number:	MX-VL780U
MOQ:	1Pc
Price:	2417usd/pc
Packaging Details:	Carton Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO，CE，RoHS

Brightness:

7,800 Lumen

Display Technology:

Light Source:

Laser

Resolution:

WUXGA (1920*1200)

Contrast:

5,000,000:1

Screen Size:

30-300 Inch

Throw Ratio:

1.08-1.76

Language:

26 Languages

Life Span:

Up To 30,000 Hrs

Supply Ability:

100000pcs/monthly

Highlight:

7800 Lumen 3lcd 4k projector

7800 Lumen 3lcd short throw projector

26 Languages 3lcd 4k projector

Product Description

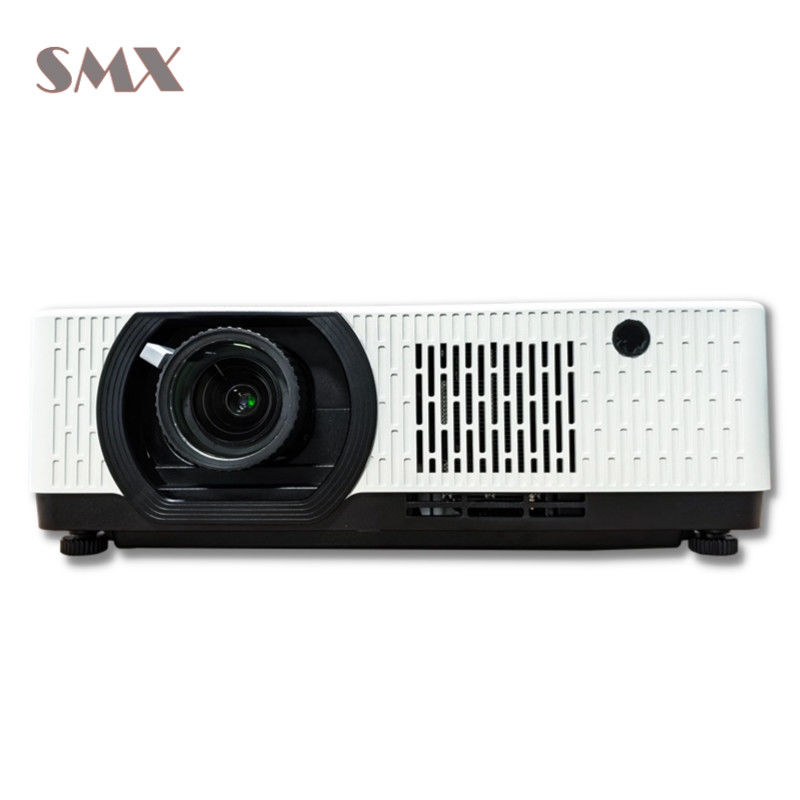

SMX 7800 Lumen 3LCD Laser Projector

The SMX's MX-VL780U is a high-brightness laser projector with 7800 lumens brightness, designed for commercial, educational and public spaces. With a lifespan of up to 30,000 hours, it can project ultra-large screens up to 300 inches in WUXGA resolution. Equipped with features such as lens shift, 1.6x optical zoom, advanced keystone correction and 360 degree projection function, the MX-VL780U projector provides flexible setup options. In addition, by using network-based LAN controls, users can transcend the physical limitations of projectors’ locations and spaces while decreasing administrative and managerial costs.

Key Features:

High Brightness 7,800 lumens
Throw Ratio: 1.08-1.76
Lens Shift : V: 0%-45%, H: ±21%
High Contrast Ratio: 5,000,000:1
Support 4K High-definition Input
Built in 16W speaker
Native Resolution: WUXGA
360° Projecion

Application Area:

Public Large Space
Hologram Projection
Immersive Projection
Commercial Display
Entertainment Venue
Education&Exhibition&Museum

Bright projection for large spaces

The SMX's MX-VL780U projector, with an output brightness of 7800 ANSI lumen, provides a vivid and clear projection in all lighting conditions. It is ideal for meeting rooms, lecture halls, galleries, simulation facilities and other large spaces.

7800 Lumen 26 Languages 3LCD 4k Projector With 300 Inch Screen 0

Keystone Correction

The SMX's MX-VL780U features horizontal & vertical keystone correction, hexagonal correction, pincushion/barrel distortion correction, and multi-point keystone correction. Easy adjustment ensures users get the best imaging effect on all kinds of irregular projection surfaces.

7800 Lumen 26 Languages 3LCD 4k Projector With 300 Inch Screen 1

WUXGA Native Resolution

WUXGA resolution can present high-definition video images. The technology can still maintain clear and vivid details when projected on a large screen, giving users a vibrant visual experience.

7800 Lumen 26 Languages 3LCD 4k Projector With 300 Inch Screen 2

7800 Lumen 26 Languages 3LCD 4k Projector With 300 Inch Screen 3

LAN Control Function

The SMX MX-VL780U is compatible with Crestron, PJ Link, and AMX Discovery, allowing for more efficiency and flexibility in device management. Through the use of web-based LAN control, the user can overcome the physical constraints of the location and space of the projector and reduce administration and management costs.

7800 Lumen 26 Languages 3LCD 4k Projector With 300 Inch Screen 4

Specification

	Model No.	MX-VL780U
	Brightness(Lumen)	7800
	Resolution	WUXGA
	Light source	LASER
Overall Spec
Panel	Display Technology	Liquid Crystal Display
Panel	Native Resolution	WUXGA (1920 x 1200)
Light source Life time	Full Normal/Normal mode	20000hrs
	ECO1 mode	30000hrs
	ECO2 mode	30000hrs
Projection Lens	F	1.58-2.02
	f	15.3mm-24.6mm
	Zoom/Focus	Manual
	Throw Ratio	1.08 (wide)-1.76 (tele)
	Zoom Ratio	1.6
	Screen size	30-300 inch
	Lens Shift	V:＋45%～0%, H:±21%
CR	Contrast Ratio (FOFO)	5000000:1
Noise	Noise(dB) *1	39dB(Normal) 31dB(ECO1) 29dB(ECO2)
Uniformity	Uniformity(Actual Min) -JISX6911	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9

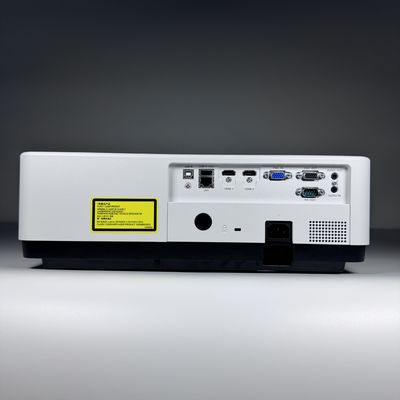

Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4B(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	HD BaseT	*1(Optional)
	Audio in (mini jack,3.5mm)	*1
Output	VGA	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
General Spec
Audio	Speaker	16W*1
Dust filter		W/Filter
Filter Life time		8000h
Power Consumption	Power Requeirements	100~240V@ 50/60Hz
	Power Consumption (Normal) (Max)	425
	Power Consumption (ECO1) (Max)	285
	Power Consumption (ECO2) (Max)	235
	ECO Standby Mode Power Consumption	<0.5W
Temp.&Humidity	Operating Temp.	0m≤Altitude≤1700m, Ambient 0°C~50°C
	Operating Temp.	1700m＜Altitude＜3000m, Ambient 0°C~40°C
	Operating humidity.	20-85%
	Store Temp.	-10 to 50°C
	High altitude	0~3000m
Other Functions
Keystone	Keystone Correction (Lens@center)	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control--AMX Discovery	Yes
	LAN Control--PJ Link	Yes
Scanning Frequency	H-Synch Range	15~100KHz
Scanning Frequency	V-Synch Range	24~85Hz
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Display Resolution	Video Signal Input	480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting	Auto Setup	INPUT SEARCH,AUTO PC,Auto Keystone
	Blank	Yes
	Suspend	Yes(5 minutes no signal as default)
	Picture mode	Dynamic,Standard,Cinema, Colorboard,sim-DICOM,Blackboard(Green)
	Cooling time	0s,normal,30s
	Auto Ceiling	Yes
	D-Zoom	1~33
Others	360° projection	Yes
Others	Edge Blending	Yes
Dimension&Weight
	Product Size (mm)	405 (W)358(D)137(H)
	Net. Weight (KG)	~7.9KG
Accessory
	Manual Languages	Chinese,English
	Standard Accessaries	Power cord, HDMI cable,Remote control

7800 Lumen 26 Languages 3LCD 4k Projector With 300 Inch Screen 5
