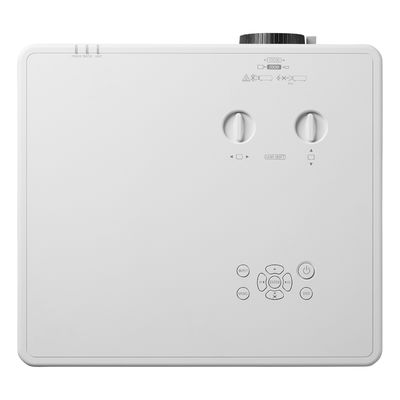

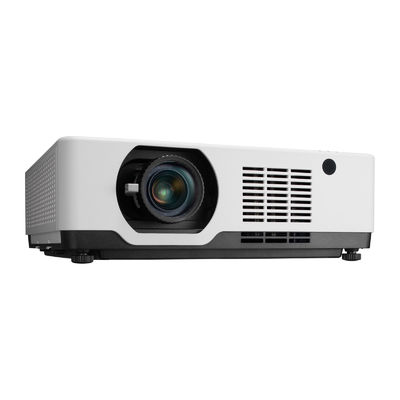

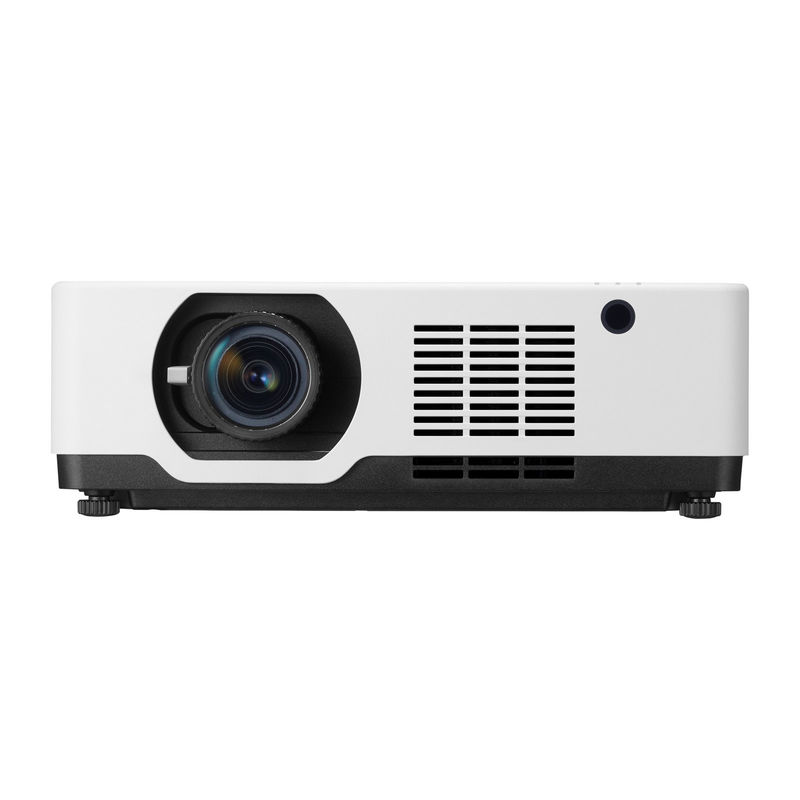

SMX 6000 Lumen Laser Projector
The SMX MX-VL600U Laser Projector with 6, 000 Lumens , designed for Immersion, Exhibition, Education and Business Applications. It has a life span of 30, 000 hours and is capable of projecting an ultra large screen with a WUXGA resolution of up to 300 inches. Equipped with Lens Shift, 1.6 Optical Zoom, Advanced Keystone Correction and 360 ° rojection, the projector offers flexible setup options. In addition, integrated LAN control ensures seamless integration with existing facility management networks.
Key Features:
WUXGA Resolution& High Contrast
Lens Shift
The SMX MX-VL600U has a lens shift function, which allows users to move the image losslessly through the menu, and users can easily adjust the position of the projected image.
Advanced Keystone Correction
The SMX MX-VL600U equipped with horizontal and vertical keystone correction, pincushion/barrel distortion correction, 4 corner correction, 6 corner geometry correction and grid image tune. Easy adjustment ensures that the user can obtain the best imaging results on various irregular projection surfaces.
High-brightness
The SMX MX-VL600U uses advanced laser light source technology to continuously and stably project a high brightness 6000 lumens. You can get a clear, sharp picture even in a bright environment. It is applicable to the application of the immersive room, the big auditorium, the meeting room, the hotel, the exhibition, etc.
360° All-round Projection Easy installation
The SMX MX-VL600U supports 360 ° all-sided projection, which allows the image to be panned without loss. The user can easily adjust the projected image location.
Centralized control for management efficiency
The SMX MX-VL650W is compatible with Crestron, PJ Link, and AMX Discovery, users can overcome the physical constraints of the location and space of the projector and reduce administration and management costs.
Specification
| Model | MX-VL600U | |
| Brightness Lumen | 6000 | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Light source Lifetime |
Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:+60%～0%, H:±29% |
|
| CR | Contrast Ratio | 5000000:1 |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

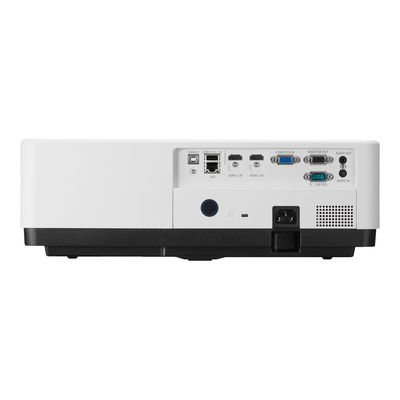

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| Audio in | *1 | |
| Output | VGA | *1 |
| Audio out | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord (EU) /power cord (Ja) Remote control |
|
