| Brand Name: | SMX |
| Model Number: | MX-SL6000W |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/monthly |

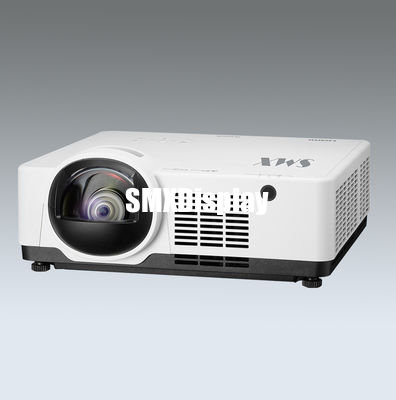

6000 Lumen WXGA Short Throw Laser Projector
The SMX MX-SL6000W is a versatile short throw projector ideal for complex applications in exhibition, museums, retail, entertainment and commercial, educational, immersive environments. Its high brightness, maintenance-free laser light engine and a host of installation features make it a product worth considering for those with challenging projection needs.
Main Features:
Up to 30,000 Hours Light-source Lifetime
Application Area:
High Contrast 5,000,000:1
High contrast projectors can provide clearer and more vivid images, improve viewing experience, adapt to different ambient light conditions, and are especially suitable for occasions requiring high-quality visual effects.
360° Free Installation
The SMX MX-SL6000W allows the projector to be rotated vertically at any angle, enabling projection onto ceilings, walls, or floors.
Advanced Keystone Correction
The SMX MX-SL6000W has horizontal & vertical keystone correction, pincushion/barrel distortion correction,4-corner correction, 6-corner geometry correction and grid image tune. Easy adjustment ensures users get the best imaging effect on all kinds of irregular projection surfaces.
Low noise system
With the closed internal circulation design and only 27dB low noise in ECO mode, users can hear the original sound of the video and enjoy a quiet viewing environment.
LAN Control
The SMX MX-SL6000W is compatible with Crestron RoomView, PJ Link, and AMX Discovery, achieving centralized equipment management, improve operational efficiency and reduce costs.
Specification
| Model | MX-SL6000W | ||
| Brightness | |||
| Brightness(Lumen) | 6000 | ||
| Overall Spec | |||
| Panel | Display Panel | 3x0.64” with MLA | |
| Display Technology | Liquid Crystal Display | ||
| Native Resolution | WXGA (1280x 800) | ||
| Light source Life time |
Normal mode | 20000hrs | |
| ECO1 mode | 30000hrs | ||
| ECO2 mode | 30000hrs | ||
| Lens | Lens Vendor | RICOH | |
| Projection Lens |
F | F1.6 | |
| f | 6.39mm | ||
| Zoom/Focus | Manual | ||
| Throw Ratio | 0.44:1 | ||
| Zoom Ratio | N/A | ||
| Screen size | 55-130 inch | ||
| Lens Shift | N/A | ||
| CR | Contrast Ratio (FOFO) |
5000000:1 | |
| Noise | Noise(dB) | TGT: 37dB (Normal) 27dB (ECO) |
|
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% | |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
|

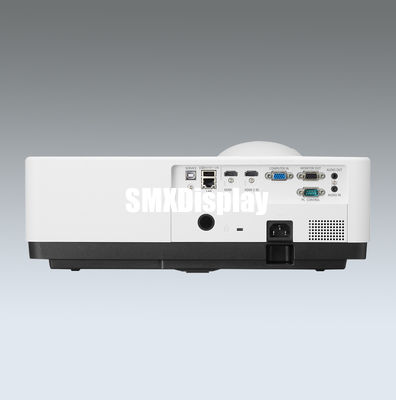

| Terminal(I/O port) | |||
| Input | VGA | *1 | |
| HDMI 1.4B(IN) | *2 | ||
| USB-A | *1 | ||
| USB-B | *1(Display) | ||
| RJ45 | *1 (Display) | ||
| Audio in (mini jack,3.5mm) |
*1 | ||
| Output | VGA | *1 | |
| Audio out (mini-jack,3.5mm) |
*1 | ||
| Control | RS232 | *1 | |
| RJ45 | *1 (Control) | ||
| USB-B | *1 (For upgrade) | ||
| General Spec | |||
| Audio | Speaker | 16W*1 | |
| Dust filter | W/Filter | ||
| Filter Life time | 8000h | ||
| Power Consumption |
Power Requeirements | 100~240V@ 50/60Hz | |
| Power Consumption (Normal) (Max) |
360 | ||
| Power Consumption (ECO1) (Max) |
280 | ||
| Power Consumption (ECO2) (Max) |
230 | ||
| ECO Standby Mode Power Consumption |
<0.5W | ||
| Temp.&Humidity | Operating Temp. | 0 to 40°C | |
| Operating Thumidity. | 20-80% | ||
| Store Temp. | -10 to 50°C | ||
| High altitude | 0~3000m | ||
| Other Functions | |||
| Keystone | Keystone Correction (Lens@center) |
V: ±15° H:±15° Pincushion/Barrel Correction 6 Corner correction 4 Corner Correction Grid image tune |
|
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi | |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes | |
| LAN Control-- AMX Discovery |
Yes | ||
| LAN Control-- PJ Link |
Yes | ||
| Scanning Frequency | H-Synch Range | 15~100KHz | |
| V-Synch Range | 24~85Hz | ||
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz | |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | ||
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone | |
| Blank | Yes | ||
| Suspend | Yes(5miniutes no singnal as default) | ||
| Picture mode | Dynamic, Standard, Cinema, Colorboard, sim-DICOM, Blackboard(Green) |
||
| Cooling time | 0s, Normal,30s | ||
| Auto Ceiling | Yes | ||
| D-Zoom | 1~33 | ||
| Others | 360° projection | Yes | |
| Dimension&Weight | |||
| MAX Dimensions (WxHxD mm) |
405(W)×404(D)×164(H) | ||
| Net. Weight (KG) | 8.1kg | ||
| Accessory | |||
| Manual Languages | Chinese,English | ||
| Standard Accessaries | Power cord, Remote control&RC Battery | ||
