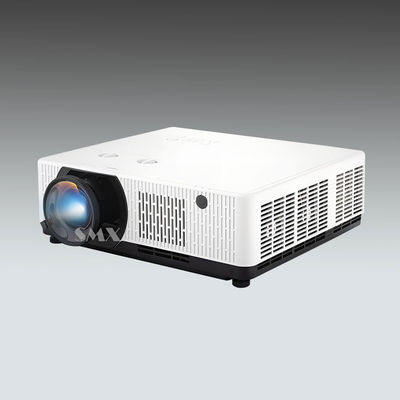

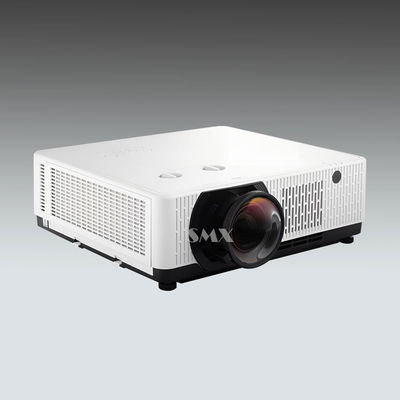

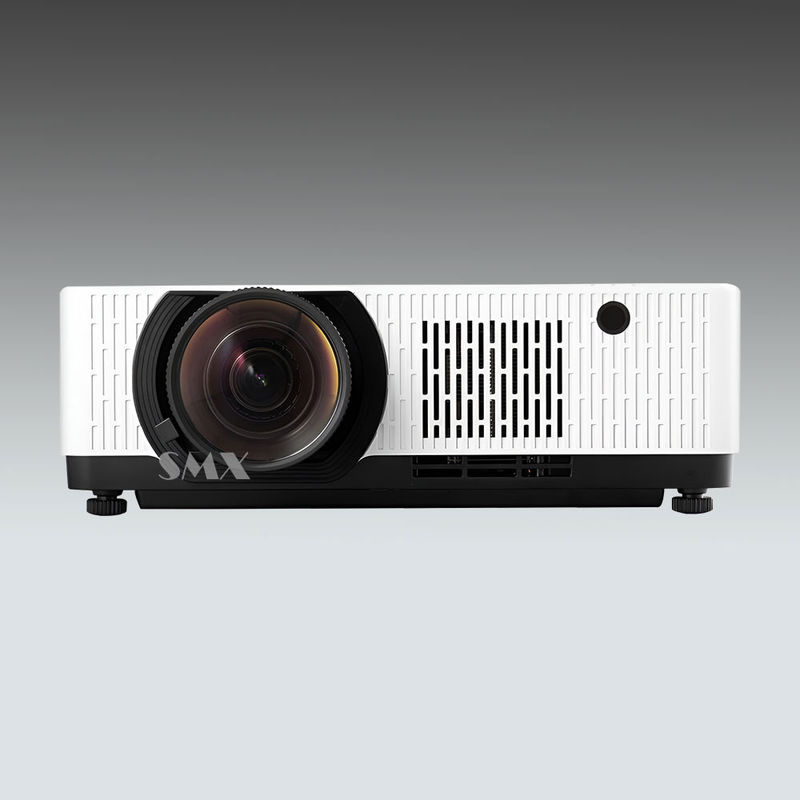

7000 Lumens Large Venue Short Throw Laser Projector Built In 16W Speaker

Brand Name: SMX
Model Number: MX-SL7000U
MOQ: 1pc
Price: 2980usd/pc
Packaging Details: Carton
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO,CE,RoHS
Document:
7000-7500Lumen Short Throw ...on.pdf
Color Reproduction:
Short Throw Laser Projector
Brightness:
7,000 Lumens
Contrast Ratio:
5000,000:1
Light Source:
Laser
Keystone Correction:
Yes
Sound System:
Built-in 16W Speaker
Resolution:
1920x1200
Display Technology:
3LCD
Supply Ability:
10000pcs/Monthly
Highlight:

7000 Lumens Short Throw Laser Projector

,

7000 Lumens short laser projector

,

Large Venue Short Throw Laser Projector

Product Description



7000 Lumen Large-Venue Short Throw Laser Projector WUXGA





The MX-SL7000U WUXGA short-throw laser projector is bright and versatile, making it an excellent choice for professional installations. With an impressive brightness level of 7,000 ANSI lumens and a laser light source that can last up to 20,000 hours, it is perfect for use in auditoriums, restaurants, gyms, and other large venues.



​7000 Lumens Large Venue Short Throw Laser Projector Built In 16W Speaker 0





Specification



　 Model No. MX-SL7000U
Brightness(Lumen) 7000
Overall Spec　　
Panel Display Panel 3x0.64" with MLA
Light source NICHIA LASER
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Lifetime Full Normal/Normal mode 20000hrs
Projection Lens F 1.7~1.8
f 9.66mm-11.65mm
Zoom/Focus Manual
Throw Ratio 0.68 (wide)-0.82 (tele)
Zoom Ratio 1.21
Screen size 50-300inch
Lens Shift V:＋50%～0%,
H:±20%
CR Contrast Ratio 5000000:1
Uniformity Uniformity 80%
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9

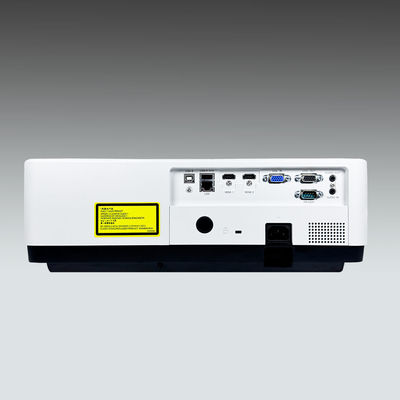

Terminal(I/O port)　　
Input VGA *1
HDMI 1.4B(IN) *2
USB-A *1
USB-B *1 (Display)
RJ45 *1(Display)
HD BaseT *1(Optional)
Audio in
(mini jack,3.5mm)		 *1
Output VGA *1
Audio out
(mini-jack,3.5mm)		 *1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
General Spec　　
Audio Speaker 16W*1
Other Functions　　
Keystone Keystone Correction
(Lens@center)		 V: ±15°
H: ±15°
Pincushion/Barrel Correction
6 Corner Geometry correction
4 Corner Correction
Grid image tune
LAN Control LAN Control-RoomView
(Crestron)		 Yes
LAN Control--AMX Discovery Yes
LAN Control-- PJ Link Yes
Display Resolution Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Video Signal Input 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Others 360° projection Yes
Edge Blending Yes
Accessory　　
　 Manual Languages Chinese, English
Standard Accessories Power cord, HDMI cable, and Remote control





Application



7000 Lumens Large Venue Short Throw Laser Projector Built In 16W Speaker 1





Short Throw Projector with Len Shift



This Projector with lens shift allows users to adjust the image vertically and/or horizontally without physically moving the projector. This feature helps in flexible installation and easy image alignment, making it ideal for off-center or high-mounted setups.



7000 Lumens Large Venue Short Throw Laser Projector Built In 16W Speaker 2





Short Throw Projector with Keystone Correction



A projector with keystone correction can digitally adjust the image to correct distortion caused by the projector not being perfectly aligned with the screen. This ensures a rectangular image even if the projector is tilted or off-center.



7000 Lumens Large Venue Short Throw Laser Projector Built In 16W Speaker 3





Short-Throw Laser Projector with Multiple Ports


It with multiple ports that offer various input options—such as HDMI, USB, VGA, and AV—allowing easy connection to different devices like laptops, gaming consoles, and media players for versatile use.



7000 Lumens Large Venue Short Throw Laser Projector Built In 16W Speaker 4
