High Brightness 3LCD Large Venue Laser Projector Large Venue 4k Projector

Brand Name:	SMX
Model Number:	MX-VL7800U
MOQ:	1pc
Price:	2417usd/pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE,RoHS

Document:

Light Source:

Laser

Product Name:

3LCD Laser Projector

Brightness:

78,000 Lumens

Len Shift:

V:＋45%～0%,H:±21%

Keystone Correction:

Vertical: ±0°, Horizontal: ±30°

Resolution:

WUXGA (1920 X 1200)

Throw Ratio:

1.08 (wide)-1.76 (tele)

Lamp Life:

Up To 30,000 Hours

Supply Ability:

10000pcs/Monthly

Highlight:

High Brightness Large Venue Laser Projector

High Brightness Large Venue 4k Projector

3LCD Large Venue Laser Projector

Product Description

MX-VL780U Large Venue Laser Projector with 30000hrs Light Source Lifetime

High Brightness 3LCD Large Venue Laser Projector Large Venue 4k Projector 0

Brightness

7800 high-lumen brightness
The light module features a long-life laser diode, which allows for low-cost operation without the need for replacement or maintenance.
The brightness is adjustable from 50% to 100% in Normal mode, unlike traditional light sources.

Support High-Resolution Signal

The projector has a Multi-scan system to conform to many output signals. Up to WUXGA (COMPUTER), 4K@30Hz (HDMI).

Useful Functions for Presentation

The digital zoom function allows you to focus on crucial information during a presentation.

The light source has a long lifetime

Normal mode:20000 hrs
ECO mode: 30000hrs

Multi-language Menu Display

26 language

Convenient Maintenance Functions

Filter maintenance functions provide for better and proper maintenance of the projector.

Security Function

The Security function helps you to ensure the security of the projector. With the Key lock function, you can lock the operation on the control panel. The PIN code lock function prevents unauthorized use of the projector.

Energy-saving

The Power management function reduces power consumption and maintains the light source life.

Lot 6 and Lot 26 features energy-saving technology.
The [Standby Mode] supports Lot 6, while the [Network Standby] supports Lot 26.
The projector includes an [ECO MODE] for low power consumption and a [CARBON METER] display.
The ECO MODE helps reduce power usage, and the power-saving effects when this mode is activated are quantified as reductions in CO2 emissions. this is indicated on the confirmation message displayed on-screen menu [CARBON METER].

Network

CRESTRON ROOMVIEW compatibility
Support the “MultiPresenter” Function.

Specification

	Model No.	MX-VL780U
	Brightness(Lumen)	7800
Overall Spec
Panel	Display Panel	3x0.64" with MLA
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Lifetime	Full Normal / ECO mode	20000hrs / 30000hrs
Projection Lens	F	1.58-2.02
	f	15.3mm-24.6mm
	Zoom/Focus	Manual
	Throw Ratio	1.08 (wide)-1.76 (tele)
	Zoom Ratio	1.6
	Screen size	30-300 inch
	Lens Shift	V:＋45%～0%,H:±21%
CR	Contrast Ratio	5000000:1
Noise	Noise(dB)	39dB(Normal) /31dB(ECO1) / 29dB(ECO2)
Uniformity	Uniformity	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9

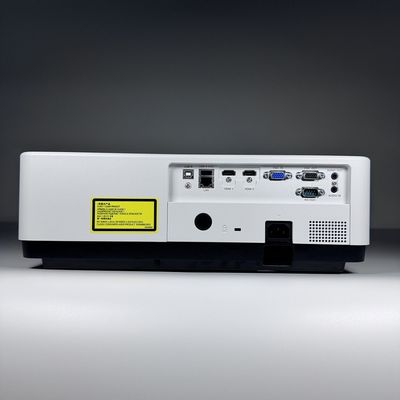

Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4B(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	HD BaseT	*1(Optional)
	Audio in	*1
Output	VGA	*1
Output	Audio out	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
General Spec
Audio	Speaker	16W*1
Other Functions
Keystone	Keystone Correction (Lens@center)	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control--AMX Discovery	Yes
	LAN Control--PJ Link	Yes
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Display Resolution	Video Signal Input	480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting	Auto Setup	INPUT SEARCH, AUTO PC, Auto Keystone
	Picture mode	Dynamic, Standard, Cinema, Colorboard,sim-DICOM, Blackboard(Green)
	Auto Ceiling	Yes
Others	360° projection	Yes
Others	Edge Blending	Yes

High Brightness 3LCD Large Venue Laser Projector Large Venue 4k Projector 1

High Brightness 3LCD Large Venue Laser Projector Large Venue 4k Projector 2

High Brightness 3LCD Large Venue Laser Projector Large Venue 4k Projector 3

High Brightness 3LCD Large Venue Laser Projector Large Venue 4k Projector 4

High Brightness 3LCD Large Venue Laser Projector Large Venue 4k Projector 5

Product Details

High Brightness 3LCD Large Venue Laser Projector Large Venue 4k Projector 6
