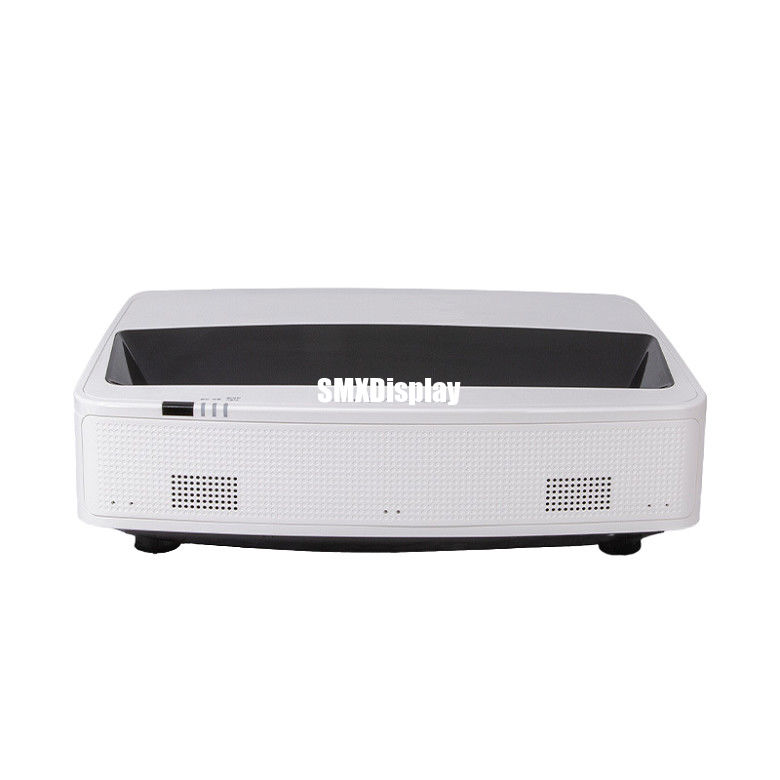

SMX MX-WPL500U 5000 Lumen UST Laser Projector with WUXGA for Home Cinema

Brand Name:	SMX
Model Number:	MX-WPL500U
MOQ:	1pc
Price:	1980usd/pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE,RoHS

Document:

Model:

UST Home Cinema Projector

Brightness:

5000 Lumens

Resolution:

WUXGA

Throw Ratio:

0.235:1

Light Source:

Laser

Speaker:

Built-in 16W

Supply Ability:

10000pcs/Monthly

Highlight:

High Performance 3LCD UST Projector

High Performance ultra short throw projector

4200 Lumen 3LCD UST Projector

Product Description

High-Performance 4200 Lumen WXGA 3LCD Ultra Short Throw Projector for Limited Environments

Project Large Images in Limited Spaces
Optimize the display of large images in areas with limited space while avoiding shadows on the screen. This solution is ideal for small rooms and environments with constrained installation space, such as hybrid classrooms or huddle rooms.

Simplified Installation and Setup
Installation is quick and easy, even in rooms with low ceilings. Our wall-mount option comes partially preassembled, allowing you to save time and resources during setup.

Low Maintenance and Energy Efficiency
The light source and filter require no maintenance for up to 20,000 hours, and the projector is designed to be energy-efficient, helping you save resources without sacrificing performance. Enjoy large 80-120 inch images in any room size, ensuring a clear and impactful presentation without the hassle of complicated installations.

SMX MX-WPL500U 5000 Lumen UST Laser Projector with WUXGA for Home Cinema 0

Specification

Model No.	MX-D4200WT
Brightness
	Brightness (Marketing) ( Ansi Lumens )	4200
Optical Data
Panel	Display Panel	3x0.64"
	Display Technology	Liquid Crystal Display
	Native Resolution	WXGA (1280x800)
Light source	Light source	(High-Bright LED 202U) + P2W
Light source	Lifetime(H)	20000H
Projection Lens	Throw Ratio	Lens with TR:0.235
	F	F1.7
	Offset	118%
	Screen size	0.456m@90"
CR	Contrast Ratio(Min)	100000:1
Noise	Noise(dB)@1m	Normal: 39dB; ECO: 33dB
Uniformity	Uniformity	75%
AR	Aspect Ratio	16:10 (Standard)/16:9(Compatible)
Terminal(I/O port)
Input	VGA	*2
	Audio in (mini jack,3.5mm)	*1
	Video	*1
	Audio in(L/R)--RCA	*2
	HDMI 1.4	*2
	USB-A 2.0	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
Output	VGA	*1
Output	Audio out(mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1(for upgrade)
General Spec
Audio	Speaker	1*16W
Other Functions
Keystone	Keystone Correction	V: ±5° (manual) H: ±5° (manual) Pincushion/Barrel Correction Corner Keystone
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Dimension&Weight
	MAX Dimensions (WxDxH mm)	408428173(Including Boss)
	Net. Weight (KG)	~10KG
	Packaging (WxHxD mm)	560272523
	Gross. Weight (KG)	~13KG

SMX MX-WPL500U 5000 Lumen UST Laser Projector with WUXGA for Home Cinema 1
