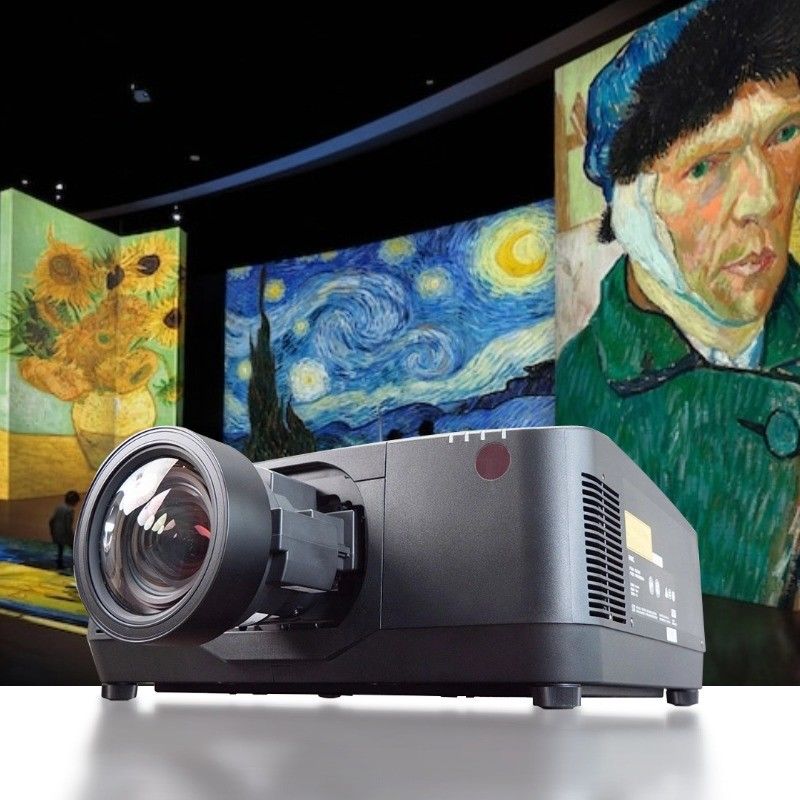

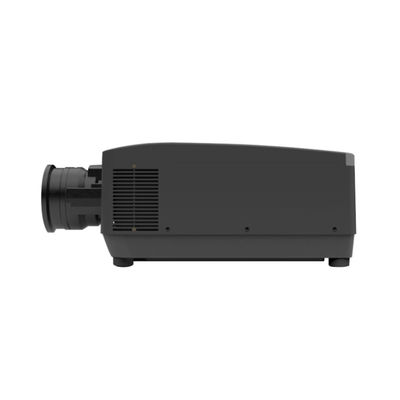

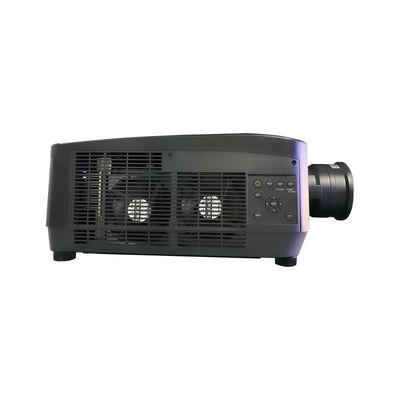

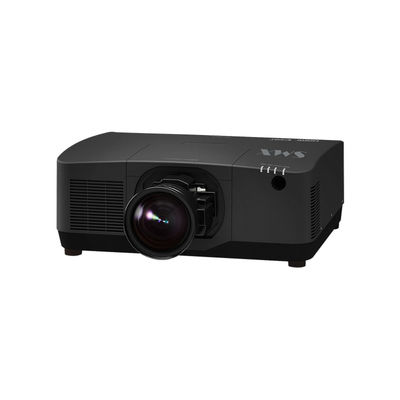

20000 Lumen Projector High Brightness Immersive Projector 4K Support

Brand Name:	SMX
Model Number:	MX-X20000U
MOQ:	1pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Product Name:

Large Venue Engineering Projector

Display Technology:

Liquid Crystal Display

Display Panel:

3x1.0"

Brightness:

20,000 Lumen

Light Source:

Laser

Native Resolution:

WUXGA

Contrast Ratio:

3,000,000:1

Lens Shift:

V:±65% H:±25%

Zoom/Focus:

Motorized

Projection Size:

60-500 Inch

Edge Blending:

Languages:

26 Languages

Supply Ability:

10000pcs/Monthly

Highlight:

Outdoor Large Venue Projector

26 Languages Large Venue Projector

Outdoor large auditorium projectors

Product Description

Outdoor Large Venue Engineering Projectors 20000 Lumen LCD Laser WUXGA Projector

The SMX’s MX-X20000U is a 3LCD Laser Projector with 20,000 lumen. It has advanced professional installation capabilities and is suitable for both commercial, public spaces and higher education users. With its multitude of digital inputs, it is possible to connect to any computer or high definition device. With a full range of optional motorized lenses and 360° flexible installation. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, Ethernet power and various control signals.

Key Features:

20,000 Lumen High Brightness
3,000,000 :1 High Contrast
20,000 Hours Laser Lifespan
Support 360° projection
Zoom&Focus&Lens Shift function
Up to 500'' super big screen
Versatile Installation Capability

Recommended Applications:

Outdoor Large Venue Projection, 3D Mapping & Building Projection, Immersive Experience Projection, 3D Hologram Projection, Exhibitions and Museums, Commercial Advertising and Digital Signage etc.

WUXGA Resolution(1920*1200)

WUXGA offers higher vertical resolution than 1080p, capable of showing greater detail and is suitable for professional presentations and high-quality video playback.

20000 Lumen Projector High Brightness Immersive Projector 4K Support 0

Lens Shift

Vertical and horizontal lens shift enables flexible projector placement. It allows lossless panning of the image through the menu, and users can easily adjust the position of the projected image.

20000 Lumen Projector High Brightness Immersive Projector 4K Support 1

High Contrast

The high contrast ratio of 3,000,000:1 significantly improves the projector's image quality, making it better in color performance, detail recognition and overall viewing experience.

20000 Lumen Projector High Brightness Immersive Projector 4K Support 2

Edge Blending

The edge blending function allows multiple projectors to splice together a complete picture, achieving seamless connection, ultra-large screen, bright and vivid, high-resolution effects.

20000 Lumen Projector High Brightness Immersive Projector 4K Support 3

Laser Light Source

With a lifespan of 20,000 hours , assuming 4 hours of use per day the light source can be used for around 13 years.

20000 Lumen Projector High Brightness Immersive Projector 4K Support 4

20000 Lumen Projector High Brightness Immersive Projector 4K Support 5

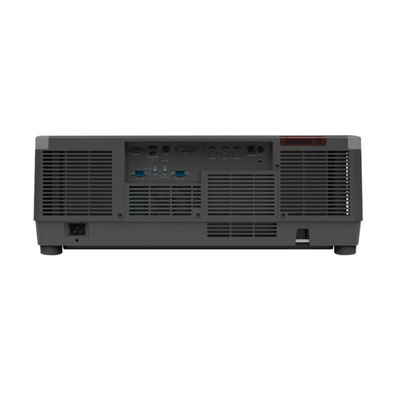

Multiple Ports

20000 Lumen Projector High Brightness Immersive Projector 4K Support 6

Specification

Model	MX-X20000U
Brightness
	Brightness(Lumen)	20,000
Overall Spec
Panel	Display Panel	3x1.0"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode	20000hrs
Laser Lifetime	ECO mode	30000hrs
Projection Lens (STD)	Len Model	MX-EG12ZLM
	Zoom/Focus	Motorized
	Throw Ratio (16:10)	1.24-2.01 @100inch
	F	1.8-2.24
	f	27.7-44.3mm
	Zoom Ratio	1.62
	Screen size	60-500 inch
	Lens Shift V	±65%
	Lens Shift H	±25%
CR	Contrast Ratio(Min)	3,000,000:1
Noise	Noise(dB)	Full:46db / Normal:44db / Eco1:43db / Eco2:42db
Uniformity	Uniformity	TYP:90%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	DVI-D	*1
	HD BaseT	*1
	Audio in(mini jack,3.5mm)	*1 (VGA/DVI-D share)
	DMX512	*1
Output	HDMI 1.4(OUT)	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others	360° projection	360° Install
	Edge Blending	Yes
	Adjustable brightness	Yes
Dimension&Weight
	Product Size (WxHxD mm)	599X240.2X493.8mm (not including lens)
	Net. Weight (KG)	28.9Kg (not including lens)
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord (3m, Black), Remote control

20000 Lumen Projector High Brightness Immersive Projector 4K Support 7
