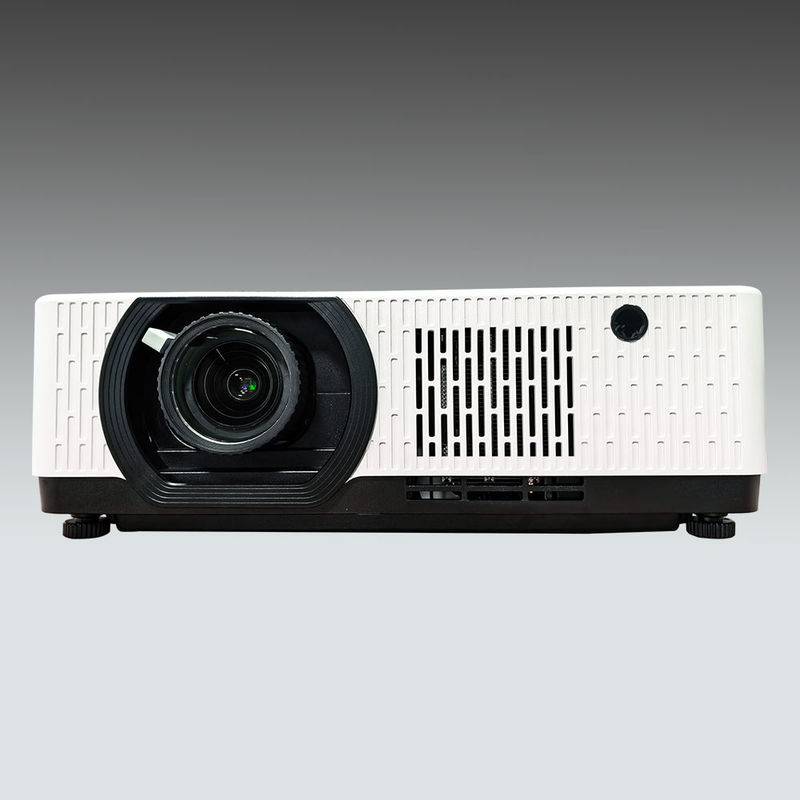

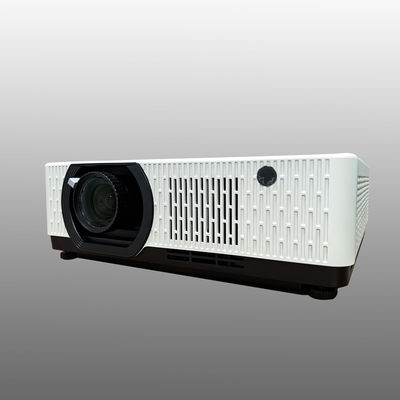

8200 Lumens 360° Projection Large Venue Laser Projector

Brand Name:	SMX
Model Number:	MX-VL820U
MOQ:	1pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE,RoHS

Document:

Product Name:

Laser Projector

Lens Type:

Manual Zoom And Focus

Throw Distance:

1.2 - 2.4:1

Brightness:

8200 Lumens

Contrast Ratio:

5,000,000:1

Projection Method:

Front, Rear, Ceiling Mount

Resolution:

WUXGA (1920 X 1200)

Aspect Ratio:

16:10

Supply Ability:

10000pcs/Monthly

Highlight:

8200 Lumens Large Venue Projector

8200 Lumens large venue 4k projector

360° Projection Large Venue Projector

Product Description

8200 Lumens 360° Projection Large Venue Laser Projector

Experience stunning visuals and exceptional image quality with the SMX MX-VL8200U, a powerful 8200-lumen laser projector with WUXGA resolution.

Elevate your visual presentations with this 8200-lumen laser projector featuring WUXGA resolution, which combines cutting-edge technology, reliability, and outstanding performance for a variety of settings and applications.

Designed for professional environments, this projector offers high brightness, vibrant colors, and sharp detail, ensuring exceptional performance across multiple use cases.

8200 Lumens 360° Projection Large Venue Laser Projector 0

8200 Lumens 360° Projection Large Venue Laser Projector 1

Specification

	Model No.	MX-VL820U
	Brightness(Lumen)	8200
Overall Spec
Panel	Display Panel	3x0.64" with MLA
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Lifetime	Full Normal / ECO mode	20000hrs
Projection Lens	F	1.58-2.02
	f	15.3mm-24.6mm
	Zoom/Focus	Manual
	Throw Ratio	1.08 (wide)-1.76 (tele)
	Zoom Ratio	1.6
	Screen size	30-300 inch
	Lens Shift	V:＋45%～0%,H:±21%
CR	Contrast Ratio	5000000:1
Noise	Noise(dB)	39dB(Normal) / 31dB(ECO1)/ 29dB(ECO2)
Uniformity	Uniformity	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4B(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	HD BaseT	*1(Optional)
	Audio in	*1
Output	VGA	*1
Output	Audio out	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
General Spec
Audio	Speaker	16W*1
Other Functions
Keystone	Keystone Correction (Lens@center)	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control--AMX Discovery	Yes
	LAN Control--PJ Link	Yes
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Display Resolution	Video Signal Input	480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting	Auto Setup	INPUT SEARCH, AUTO PC, Auto Keystone
	Picture mode	Dynamic, Standard, Cinema, Colorboard, sim-DICOM, Blackboard(Green)
	Auto Ceiling	Yes
Others	360° projection	Yes
Others	Edge Blending	Yes

WUXGA Resolution

Immerse yourself in crystal-clear visuals with WUXGA resolution, offering a higher pixel density and sharper image quality compared to standard HD resolutions, ensuring every detail is displayed with incredible clarity.

8200 Lumens 360° Projection Large Venue Laser Projector 2

Build in 16W Speaker

8200 Lumens 360° Projection Large Venue Laser Projector 3

Laser Light Source

It features a laser light source with an impressive 30,000-hour lifespan. Say goodbye to frequent bulb replacements and enjoy consistent brightness and color accuracy over long periods of use.

8200 Lumens 360° Projection Large Venue Laser Projector 4

Easy LAN Control

The built-in RJ45 connection lets you set up and manage projector content remotely from a PC or laptop. You can easily turn the projector on or off, adjust the volume, and modify other settings using an intuitive on-screen interface.

8200 Lumens 360° Projection Large Venue Laser Projector 5

Len Shift

Projector lens shift is a feature that allows users to adjust the position of the projected image without physically moving the projector. By shifting the lens vertically or horizontally, users can correct keystone distortion, align the image precisely on the screen, and facilitate flexible installation in various mounting positions. This feature enhances installation versatility and simplifies the setup process, ensuring optimal image quality and alignment for different projection scenarios.

8200 Lumens 360° Projection Large Venue Laser Projector 6

Keystone Correction

This projector with keystone correction is designed to optimize your viewing experience by correcting image distortion and ensuring a perfect display regardless of projector placement. With keystone correction, you can easily adjust the image shape to achieve a rectangular and proportional display, even when the projector is placed at an angle or off-center.

8200 Lumens 360° Projection Large Venue Laser Projector 7

HD-BaseT (Optional)

8200 Lumens 360° Projection Large Venue Laser Projector 8

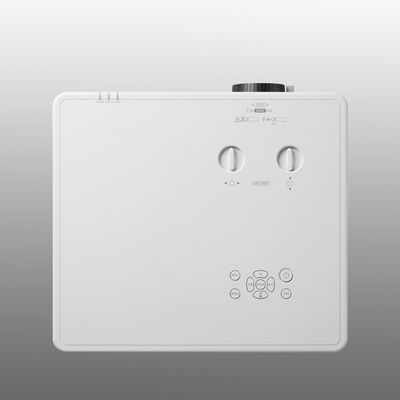

Product Details

8200 Lumens 360° Projection Large Venue Laser Projector 9

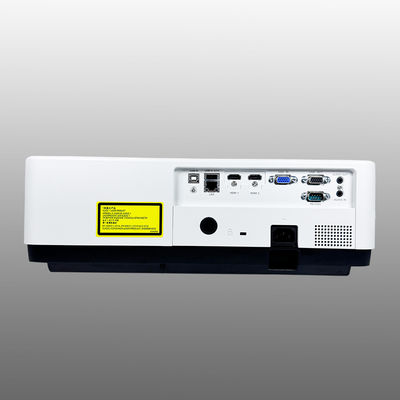

Ports

8200 Lumens 360° Projection Large Venue Laser Projector 10
