| Brand Name: | SMX |
| Model Number: | MX-WPL500U |
| MOQ: | 1pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |

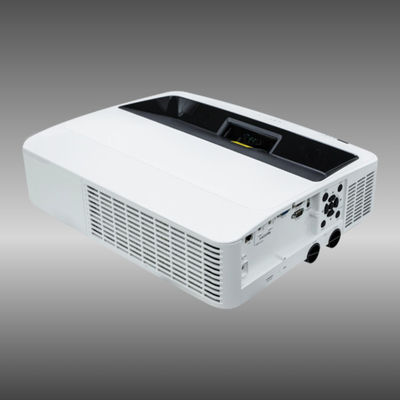

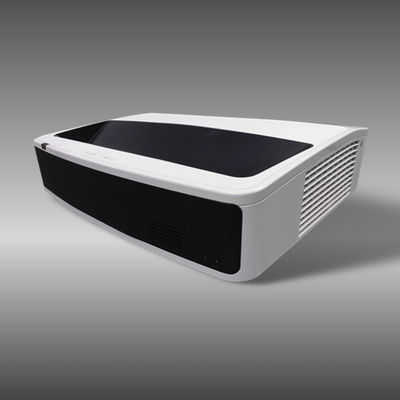

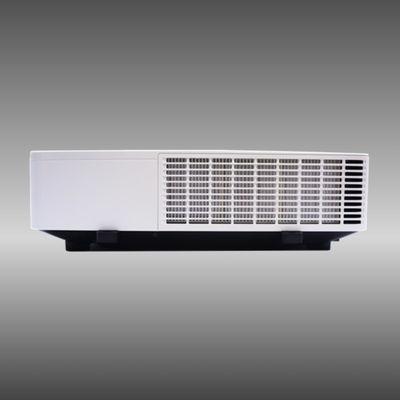

Ultra Short Throw Projector UST Laser Multimedia Projector Best For ALR Screen For High-end Home Theater
Main Features:
Specification
|
Model No. |
MX-WPL500U | |
| Brightness | ||
| Lumen | 5000 | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.63" with MLA |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA(1920x1200) | |
| Light source Lifetime |
Normal mode | 20000hrs |
| ECO2 mode | 30000hrs | |
| Projection Lens | F | F1.7 |
| f | 2.94mm | |
| Lens Vendor | RICOH | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.235:1 | |
| Screen size | 80-120" | |
| CR | Contrast Ratio | 5000000:1 |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA*1,HDMI*2,USB-A*,USB-B*1(Display),RJ45*1(Display), Audio in*1 |
|
| Output | VGA*1 ,Audio out*1 | |
| Control | RS232*1,RJ45*1,USB-B *1 | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±5° H:±5° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control-- PJ Link |
Yes | |
| Display Resolution |
Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| Others | 360° projection | Yes |
| Dimension&Weight | ||
| Product Size (WxHxD mm) |
520x435x168 | |
| Net. Weight (KG) | 11 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord, Remote control | |
