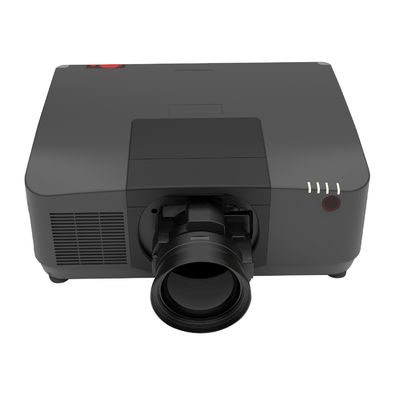

20000 Lumen WUXGA 3LCD Laser Projector for 3D Mapping Projections

Brand Name:	SMX
Model Number:	MX-X20000U
MOQ:	1pc
Price:	19980usd/pc
Packaging Details:	Carton/ Flight Case
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Document:

Product Name:

20000 Lumen Laser Projector

Brightness:

20,000 Lumen

Light Source:

Laser

Resolution:

WUXGA

Contrast:

5,000,000:1

Len Shift:

Keystone:

Supply Ability:

12000pcs/Monthly

Highlight:

WUXGA 3LCD Laser Projector

3D Mapping Projections Laser Projector

20000 Lumen Laser Projector

Product Description

20000 Lumen WUXGA Laser Projector for 3D Mapping Projections

Experience stunning visual performance with the SMX MX-X20000U, a 20,000-lumen WUXGA-resolution laser projector meticulously designed for professional 3D mapping, large-scale projections, and immersive visual experiences. Built with cutting-edge laser projection technology, this high-performance projector delivers exceptional brightness, superior image clarity, and long-lasting reliability, making it the ideal solution for outdoor projections, stage performances, exhibitions, architectural mapping, and other demanding applications.

Ideal Applications

3D Projection Mapping: Create dynamic, interactive, and immersive visuals on buildings, landscapes, and unconventional surfaces.
Live Events & Concerts: Deliver stunning stage projections and immersive backgrounds for concerts, festivals, and corporate events.
Museums & Exhibitions: Enhance visitor experiences with interactive displays, digital art installations, and stunning exhibition visuals.
Theme Parks & Entertainment Venues: Provide captivating visual effects for attractions, rides, and entertainment shows.
Simulation & Training: Ideal for flight simulation, military training, and virtual reality applications requiring high-resolution and high-contrast imagery.

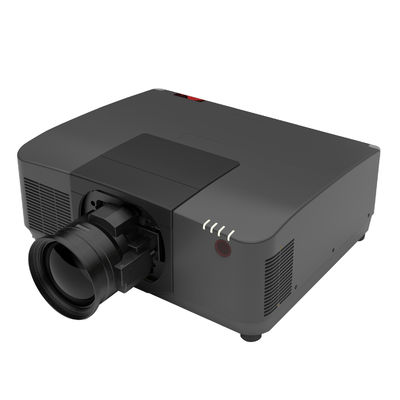

20000 Lumen WUXGA 3LCD Laser Projector for 3D Mapping Projections 0

Why Choose the SMX MX-X20000U?

✔ Ultra-bright 20,000 lumens for large-scale projection
✔ WUXGA resolution with 4K signal support
✔ Laser light source with up to 30,000-hour lifespan
✔ High dynamic contrast ratio of 5000,000:1
✔ Motorized interchangeable lenses for flexible installation
✔ Advanced 3D mapping and edge blending capabilities
✔ Multiple connectivity options for seamless integration

Len Shift

A projector with lens shift enhances installation flexibility, maintains image quality, and simplifies setup, making it an excellent choice for home theaters, business presentations, educational institutions, and large-scale projection applications.

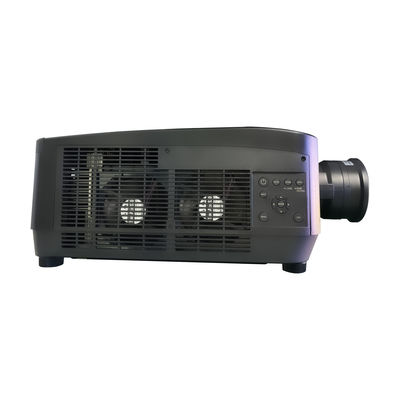

20000 Lumen WUXGA 3LCD Laser Projector for 3D Mapping Projections 1

Flexible Lens Options for Custom Installations

The SMX MX-X20000U features motorized interchangeable lenses with a wide throw ratio range of 0.53:1 to 7.5:1, allowing for versatile installation options. Whether ceiling-mounted, floor-standing, or rear-projection, this projector adapts seamlessly to various venue sizes and projection distances, enabling precise image alignment and distortion-free visuals.

Model#		MX-EG05ZLM	MX-EG06ZLM	MX-EG08ZLM	MX-EG12ZLM	MX-EG20ZL	OL-EG39ZLM
Image circle		Φ34.6	Φ35.5	Φ37.9	Φ37.9	Φ37.9	Φ37.9
Zoom/Focus		Motorized	Motorized	Motorized	Motorized	Motorized	Motorized
F# (Wide-Tele)		1.85-2.20	1.84-2.25	1.80-2.24	1.80-2.24	1.84-2.58	1.85-2.42(TBD)
f(mm)		12.0-14.6	14.4-19.1	19.0-27.6	27.7-44.3	43.8-86.0	86.8-163.5(TBD)
Throw Ratio (16:10)		0.53-0.65	0.65-0.87	0.86-1.25	1.24-2.01	1.98-3.95	3.95-7.50(TBD)
Zoom Ratio		1.23	1.34	1.45	1.62	1.99	1.90(TBD)
Lens shift	H	±20%	±20%	±25%	±25%	±25%	±25%
Lens shift	V	±50%	±55%	±65%	±65%	±65%	±65%
Screen Size		60-500inch	60-500inch	60-500inch	60-500inch	60-500inch	60-500inch

Main Specification

Model#	MX-X20000U
Brightness
	Brightness(Lumen)	20,000
Overall Spec
Panel	Display Panel	3x1.0"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode	20000hrs
Laser Lifetime	ECO mode	30000hrs
Projection Lens (STD)	Len Model	MX-EG12ZLM
	Zoom/Focus	Motorized
	Throw Ratio (16:10)	1.24-2.01 @100inch
	F	1.8-2.24
	f	27.7-44.3mm
	Zoom Ratio	1.62
	Screen size	60-500 inch
	Lens Shift V	±65%
	Lens Shift H	±25%
CR	Contrast Ratio(Min)	3,000,000:1
Noise	Noise(dB)	Full:46db / Normal:44db / Eco1:43db / Eco2:42db
Uniformity	Uniformity	TYP:90%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	DVI-D	*1
	HD BaseT	*1
	Audio in(mini jack,3.5mm)	*1 (VGA/DVI-D share)
	DMX512	*1
Output	HDMI 1.4(OUT)	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others	360° projection	360° Install
	Edge Blending	Yes
	Adjustable brightness	Yes
Dimension&Weight
	Product Size (WxHxD mm)	599X240.2X493.8mm (not including lens)
	Net. Weight (KG)	28.9Kg (not including lens)
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord (3m, Black), Remote control
