20000 Lumens WUXGA Laser Projector Dome Projection 3D Mapping Projector For Museums & Exhibitions

Brand Name:	SMX
Model Number:	MX-X20000U
MOQ:	1pc
Price:	17500usd/pc
Packaging Details:	Carton/ Flight Case
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Document:

Product Name:

Outdoor Laser Projector

Brightness:

20,000 Lumen

Light Source:

Laser

Resolution:

WUXGA

Contrast:

5,000,000:1

Len Shift:

Keystone Correction:

Lenses:

Manual /Motorized

Supply Ability:

12000pcs/Monthly

Highlight:

20000 Lumens WUXGA Laser Projector

Museums 3D Mapping Projector

Exhibitions 3D Mapping Projector

Product Description

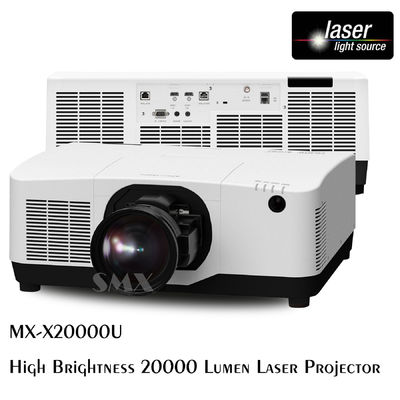

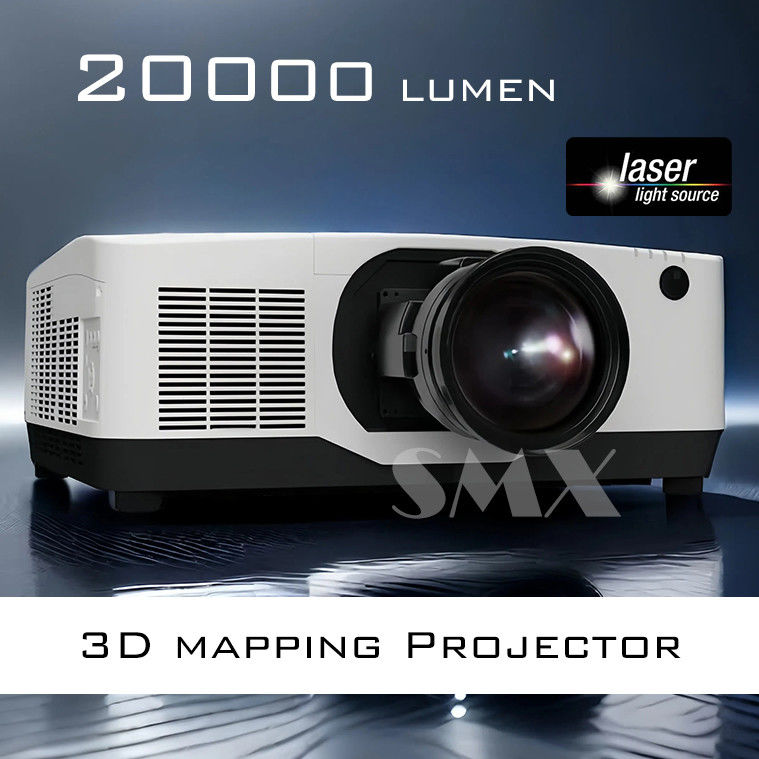

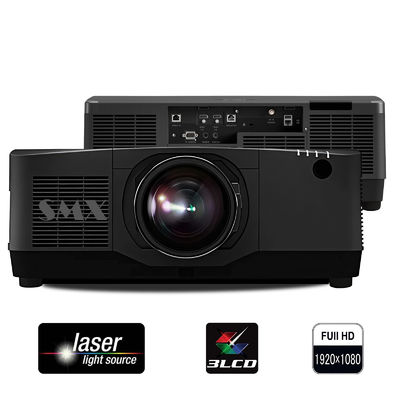

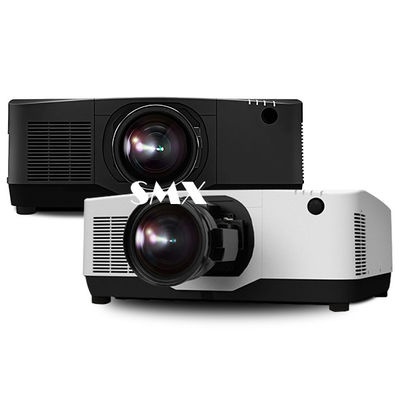

SMX MX-X20000U: 20,000-Lumen WUXGA Laser Projector for 3D Mapping

Experience exceptional visual performance with the SMX MX-X20000U, a 20,000-lumen WUXGA-resolution laser projector designed for professional 3D mapping and large-scale projections. Advanced laser technology offers outstanding brightness, clarity, and reliability for outdoor projections, stage performances, and architectural mapping applications.

Ideal Applications:

- 3D Projection Mapping: Create immersive visuals on various surfaces.

- Live Events & Concerts: Enhance stage visuals for concerts and festivals.

- Museums & Exhibitions: Elevate visitor experiences with interactive displays.

- Theme Parks & Entertainment Venues: Deliver captivating visual effects for attractions.

- Simulation & Training: Perfect for high-resolution imagery in simulations and VR.

Main Specification

Model#	MX-X20000U
Brightness
	Brightness(Lumen)	20,000
Overall Spec
Panel	Display Panel	3x1.0"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode	20000hrs
Laser Lifetime	ECO mode	30000hrs
Projection Lens (STD)	Len Model	MX-EG12ZLM
	Zoom/Focus	Motorized
	Throw Ratio (16:10)	1.24-2.01 @100inch
	F	1.8-2.24
	f	27.7-44.3mm
	Zoom Ratio	1.62
	Screen size	60-500 inch
	Lens Shift V	±65%
	Lens Shift H	±25%
CR	Contrast Ratio(Min)	3,000,000:1
Noise	Noise(dB)	Full:46db / Normal:44db / Eco1:43db / Eco2:42db
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	DVI-D	*1
	HD BaseT	*1
	Audio in(mini jack,3.5mm)	*1 (VGA/DVI-D share)
	DMX512	*1
Output	HDMI 1.4(OUT)	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Others	360° projection	360° Install
	Edge Blending	Yes
	Adjustable brightness	Yes
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord (3m, Black), Remote control

Flexible Lens Options for Custom Installations

The SMX MX-X20000U features motorized interchangeable lenses with a wide throw ratio range of 0.53:1 to 7.5:1, allowing for versatile installation options. Whether ceiling-mounted, floor-standing, or rear-projection, this projector adapts seamlessly to various venue sizes and projection distances, enabling precise image alignment and distortion-free visuals.

Model#		MX-EG05ZLM	MX-EG06ZLM	MX-EG08ZLM	MX-EG12ZLM	MX-EG20ZL	OL-EG39ZLM
Image circle		Φ34.6	Φ35.5	Φ37.9	Φ37.9	Φ37.9	Φ37.9
Zoom/Focus		Motorized	Motorized	Motorized	Motorized	Motorized	Motorized
F# (Wide-Tele)		1.85-2.20	1.84-2.25	1.80-2.24	1.80-2.24	1.84-2.58	1.85-2.42(TBD)
f(mm)		12.0-14.6	14.4-19.1	19.0-27.6	27.7-44.3	43.8-86.0	86.8-163.5(TBD)
Throw Ratio (16:10)		0.53-0.65	0.65-0.87	0.86-1.25	1.24-2.01	1.98-3.95	3.95-7.50(TBD)
Zoom Ratio		1.23	1.34	1.45	1.62	1.99	1.90(TBD)
Lens shift	H	±20%	±20%	±25%	±25%	±25%	±25%
Lens shift	V	±50%	±55%	±65%	±65%	±65%	±65%
Screen Size		60-500inch	60-500inch	60-500inch	60-500inch	60-500inch	60-500inch

20000 Lumens WUXGA Laser Projector Dome Projection 3D Mapping Projector For Museums & Exhibitions 0

Several Optional Lenses with Different Throw Ratios, Perfect for 3D Mapping with different projection distances

20000 Lumens WUXGA Laser Projector Dome Projection 3D Mapping Projector For Museums & Exhibitions 1

Easy to Change the Len

With Len Shift Easy to adjust the image

20000 Lumens WUXGA Laser Projector Dome Projection 3D Mapping Projector For Museums & Exhibitions 3

Keystone Correction, easy to change the shape of the image, suitable for any Object surface

20000 Lumens WUXGA Laser Projector Dome Projection 3D Mapping Projector For Museums & Exhibitions 4

Edge Blending Function
