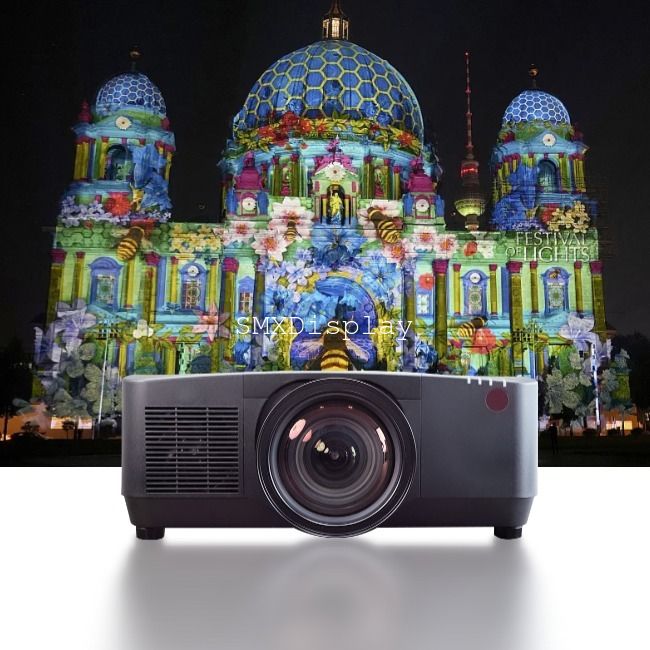

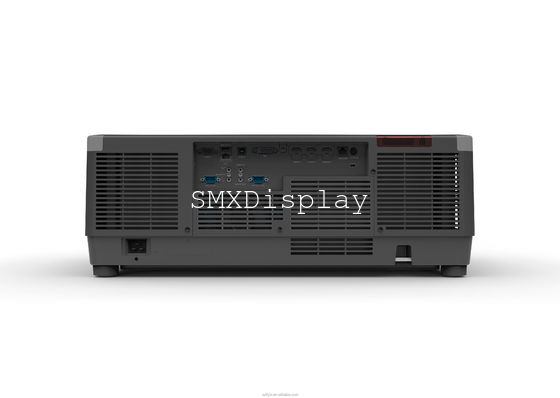

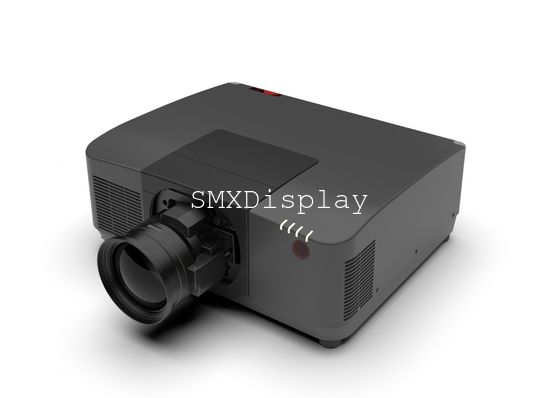

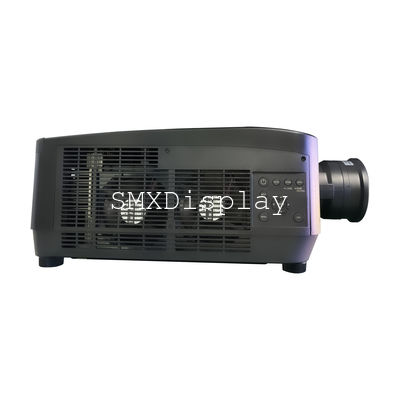

20000 Lumen Large Venue Laser Projector for 3D Mapping Projection

Brand Name:	SMX
Model Number:	MX-X20000U
MOQ:	1pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Brightness:

20,000 Lumen

Resolution:

WUXGA

Contrast:

3,000,000:1

Lens Shift:

V:±65% H:±25%

Zoom/Focus:

Motorized

Edge Blending:

Install:

360°projection

Application:

Large Venue&3D Mapping

Supply Ability:

10000pcs/Monthly

Product Description

20000 Lumen Large Venue Laser Projector for 3D Mapping Projection

Product Specifications

Brightness	20,000 Lumen
Resolution	WUXGA
Contrast	3,000,000:1
Lens Shift	V:±65% H:±25%
Zoom/Focus	Motorized
Edge Blending	Yes
Install	360° projection
Application	Large Venue & 3D Mapping

Product Overview

The SMX MX-X20000U is a professional-grade 3LCD Laser Projector delivering 20,000 lumens of brightness. Designed for commercial installations, public spaces, and higher education environments, it features advanced connectivity options and flexible installation capabilities.

Key Features:

20,000 High Lumen brightness output
3,000,000:1 High Contrast ratio
WUXGA Native Resolution (1920 x 1200)
Built-In HDBaseT Support for single cable connectivity
Lens Shift and Keystone Correction for flexible installation
Multiple input/output interfaces for versatile connectivity
20,000 Hours Ultra-long Life Laser Light Source

Applications

Large conference rooms and lecture halls: Ideal for business meetings, academic lectures, and demonstrations requiring high brightness and clarity.
Educational institutions: Enhances classroom teaching and multimedia learning in universities and schools.
Exhibitions and museums: Creates engaging displays for exhibits and artworks.
Events and performances: Provides dynamic video effects for concerts, dramas, and large-scale events.
Control rooms and monitoring centers: Displays real-time data for transportation and security applications.
Commercial advertising: Effective for digital signage in shopping malls and public spaces.

Advanced Functions

Motorized Zoom and Focus

Simplifies installation and operation with remote-controlled lens adjustments.

Virtual Remote

Control the projector directly from a computer via VGA cable without additional control cables.

Dual HDMI Inputs

Enables quick switching between presentations and simultaneous connections to high-definition sources.

Lens Shift

Vertical (±65%) and horizontal (±25%) adjustment allows lossless image positioning for flexible projector placement.

Edge Blending

Seamlessly combines multiple projected images to create a single high-resolution display.

Closed Dustproof Design

Eliminates maintenance needs for filter replacement, saving time and energy.

360° Flexible Installation

Allows projector rotation in any orientation to meet diverse installation requirements.

Technical Specifications

Model	MX-X20000U
Brightness	20,000 Lumen
Display Technology	3x1.0" Liquid Crystal Display
Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode: 20,000hrs ECO mode: 30,000hrs
Contrast Ratio	3,000,000:1
Dimensions	599 × 240.2 × 493.8mm (without lens)
Weight	28.9Kg (without lens)
