Professional 3LCD Laser Projector 7800 Lumens - Stage & Light Show Projection
The SMX's MX-VL780U is a high-brightness laser projector with 7800 lumens brightness, designed for commercial, educational and public spaces. With its superior performance, rich features, and flexible adaptability, the SMX 7800 Lumen 3LCD Laser Projector is the ideal choice for applications such as immersive projection, immersive exhibitions, 360-degree projection, outdoor projection, stage projection, and nighttime light show projection, bringing you an unprecedented visual feast!
Key Features:
Application Area:
Bright images for large venues
With an output brightness of 7800 ANSI lumens, SMX's MX-VL780U projector delivers vivid, clear projections in all lighting conditions, making it ideal for conference rooms, lecture halls, galleries, simulation venues and other large spaces.
Fits Any Environment
The SMX's MX-VL780U features tool-free lens shift control, 1.6x optical zoom, H/V ±30° keystone correction, 6-corner geometry correction and 4-corner adjustment options to adjust the image without shifting, ensuring it fits in any environment.
WUXGA Native Resolution
WUXGA resolution can present high-definition video images. The technology can still maintain clear and vivid details when projected on a large screen, giving users a vibrant visual experience.
LAN Control Function
The SMX's MX-VL780U projector is compatible with Crestron, PJ Link, and AMX Discovery, making device management more efficient and flexible. By using network-based LAN controls, users can transcend the physical limitations of projectors’ locations and spaces while decreasing administrative and managerial costs.
Specification
| Model No. | MX-VL780U | |
| Brightness(Lumen) | 7800 | |
| Resolution | WUXGA | |
| Light source | NICHIA LASER | |
| Overall Spec | ||
| Panel | Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) | |
| Light source Life time | Full Normal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| ECO2 mode | 30000hrs | |
| Projection Lens | F | 1.58-2.02 |
| f | 15.3mm-24.6mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.08 (wide)-1.76 (tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:＋45%～0%, H:±21% |
|
| CR | Contrast Ratio (FOFO) |
5000000:1 |
| Noise | Noise(dB) *1 | 39dB(Normal) 31dB(ECO1) 29dB(ECO2) |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |

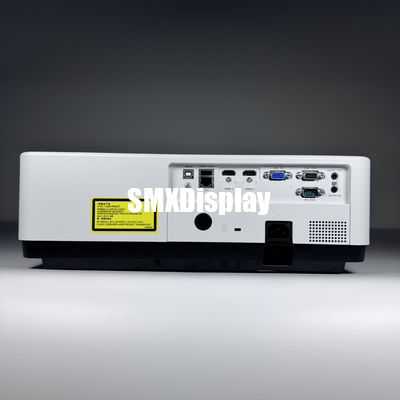

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4B(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1 (Display) | |
| RJ45 | *1 (Display) | |
| HD BaseT | *1(Optional) | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
425 | |
| Power Consumption (ECO1) (Max) |
285 | |
| Power Consumption (ECO2) (Max) |
235 | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m, Ambient 0°C~50°C |
| 1700m＜Altitude＜3000m, Ambient 0°C~40°C |
||
| Operating humidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control--AMX Discovery | Yes | |
| LAN Control--PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5 minutes no signal as default) | |
| Picture mode | Dynamic,Standard,Cinema, Colorboard,sim-DICOM,Blackboard(Green) |
|
| Cooling time | 0s,normal,30s | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | 360° projection | Yes |
| Edge Blending | Yes | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord, HDMI cable,Remote control | |
Want to create a stunning visual feast? Don't miss the SMX 7800 Lumen 3LCD Laser Projector! Boasting 7800 lumens brightness, it projects clear images even in bright outdoor light or on large stages. WUXGA resolution and a high contrast ratio of 5,000,000:1 deliver lifelike colors and rich details. Supporting 360° projection and edge blending, it's suitable for diverse scenarios such as immersive exhibitions. With menus in 26 languages and multiple network control methods, it's easy to use. Its lightweight design and standard accessories make it a must-have for any projection journey!
