| Brand Name: | SMX |
| Model Number: | MX-X22000U |
| MOQ: | 1 |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 10000pcs/monthly |

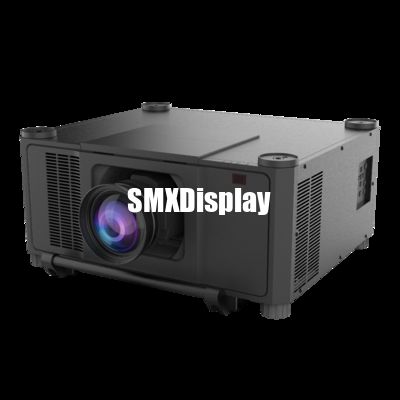

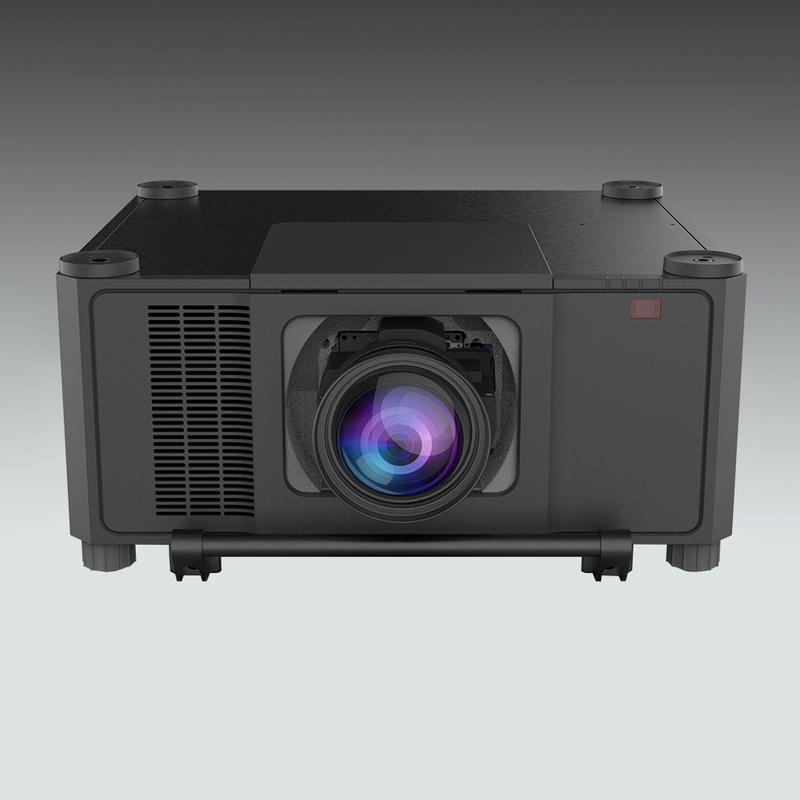

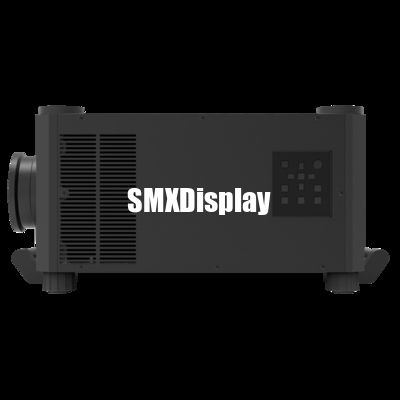

22000 Lumen WUXGA Professional Advanced LCD Laser Installation Projector
The SMX MX-X22000U offers high brightness with exceptional efficiency for long-lasting imaging performance and movie-quality color rendition. Its design emphasizes maximum productivity, achieving impressive performance while providing significant savings in cost, space, and energy.
This projector features RB laser technology, an innovative solution that efficiently produces intensely natural tones. It minimizes power consumption while delivering brilliant color performance that approaches DCI-P3 standards at high brightness levels. The projector ensures consistently superior imaging quality with its IP5X-rated optical engine, which is sealed against even the finest dust particles, effectively eliminating maintenance needs.
With advanced installation capabilities and full ProAssist support for easy management, the compact SMX MX-X22000U delivers the reliability, functionality, and value required for applications in higher education, corporate settings, leisure, and museums.
Benefits
| Key parts | ||
| Model No. | MX-X22000U | |
| Brightness ( Ansi Lumens ) |
22000 | |
| Resolution | WUXGA (1920 x 1200) | |
| Light source | Dual-Color Laser(Blue+Red) | |
| Overall Spec | ||
| Panel | Display Panel | 3x1.0” |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens (STD) | Zoom/Focus | Motorized |
| Throw Ratio(16:10) | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size | 60-500 inch | |
| Lens Shift | V: ±65% H:±25% | |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | 41dB |
| Uniformity | Uniformity | TYP:90% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |

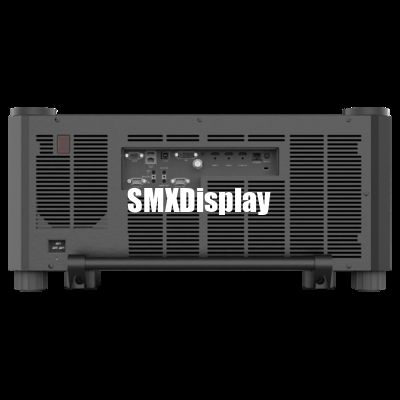

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI(3G-SDI) | *1(Display)(Optional) | |
| Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out(mini-jack,3.5mm) | *1 | |
| Control | RS232C(Input) | *1 |
| RS232C(Output) | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| General Spec | ||
| Audio | Speaker | N/A |
| Power Consumption | Power Requirements | 120~240V@ 50/60Hz |
| Power Consumption (Full) (Max) |
1520W | |
| Power Consumption (Normal) (Max) |
1400W | |
| Power Consumption (ECO1) (Max) |
1155W | |
| Power Consumption (ECO2) (Max) |
795W | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 45°C |
| Operating Thumidity. | 20%-80% | |
| Store Temp. | -10 to 50°C | |
| Store Humidity. | 20%-80% | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°,H:±30° Pincushion/Barrel Correction, 6 Corner Geometry correction Grid ImageTune correction |
| LAN Control | LAN Control-RoomView (Crestron) | Yes(Crestron 1.0) |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH, AUTO PC, |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Bright, Standard, Cinema, Colorboard, DICOM ,Blackboard(Green), Advanced |
|
| Cooling time | 0s,30s,Normal | |
| High altitude | Yes(0~3640m) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| Others | ||
| 360° projection | Yes | |
| Edge Blending | Yes | |
| Adjustable brightness | Yes | |
| Lens position memory, lens locking function | Yes | |
| Closed dustproof design, free of maintenance and replacement of the filter screen | Yes | |
| DMX512 | Yes | |
| Timing function | Yes | |
| Safety redundant circuit | Yes | |
| Dynamic power control specifications | Yes | |
| Dimension&Weight | ||
| Product size (WxHxD mm) | 655*311*664 | |
| Net. Weight (KG) | 38.7KG | |
| Packaging Size (WxHxD mm) | 810*741*442 | |
| Gross. Weight (KG) | 46KG | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord(3m,Black), Remote control | |
| Packing | Carton(Standard)/ Flight Case | |
