| Brand Name: | SMX |
| Model Number: | MX-PL9500U |
| MOQ: | 1pc |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 10000pcs/monthly |

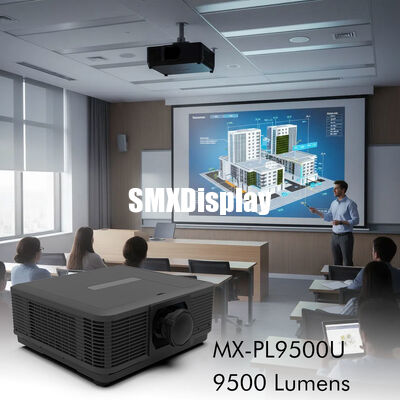

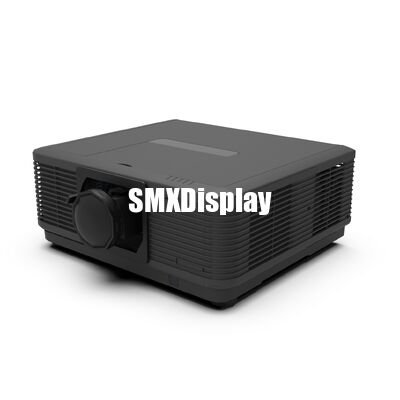

9500 Lumen High Brightness Dual-Color Laser Projector for Large Meeting Room
The SMX 9500U is engineered to redefine the meeting room experience, combining staggering 9,500 ANSI lumens of brightness with exceptional color accuracy and the convenience of a short-throw lens. Designed for boardrooms, lecture halls, and large conference spaces, this projector ensures your content is always the center of attention, even in brightly lit environments.
3LCD display technology
3LCD projection display technology with a 9500 lm true laser light source eliminates light interference. It delivers vibrant colors and clear images, creating an exceptional private home theater experience.
Dual-Color
The dual-color laser provides an extensive color gamut, achieving 100% REC709 and 92% DCI-P3 coverage for outstanding color performance. When combined with 3LCD technology, it accurately reproduces colors, delivering lifelike images.
Long laser lifespan of 20,000 hours
The brightness of a laser light source diminishes over time, with its lifespan depending on usage, environmental conditions, and user habits. If used for 4 hours daily, it can last around 20 years.
Optical zoom
The projector includes a lens-shift function for lossless image panning, allowing easy adjustments to the projected image. It features a vertical adjustment range of 45% (upward) and a horizontal range of ±23%.
Lens position memory, lens locking function
360° Projection
The projector supports 360° all-around projection. The image can be translated without loss through the menu, and users can easily adjust the position of the projected image.
Edge-blending
Through the edge fusion function, multiple projectors can splice a complete picture. With seamless connection, it pursues
a bright, super-large picture, pure colors, and high-resolution display effects.
Intelligent brightness adjustment
It has the function of intelligent brightness adjustment and can be adjusted arbitrarily between 50% and 100% brightness
Specification
| Key Parts | ||
| Mode No. | MX- PL9500U | |
| Brightness(Ansi Lumen) | 9500 | |
| Resolution | WUXGA | |
| Overall Spec | ||
| Display Device | Display Technology | 3LCD (3*0.64") |
| Native Resolution | WUXGA(1920 x 1200) | |
| Light source Lifetime |
Normal mode | 20000hrs |
| Projection Lens | Zoom/Focus type | Manual |
| Throw Ratio (optional lens) | 1.08-1.76 | |
| F#(Wide-Tele) | 1.58-2.02 | |
| f(mm) | 15.3-24.6 | |
| Screen size | 30-300" | |
| Lens Shift | V: +45%~0% H:±21% |
|
| CR | Contrast Ratio | 5000000:1 |
| Noise | Noise(dB) | Normal: 39dB Long life: 39dB Quietness: 32dB |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 |

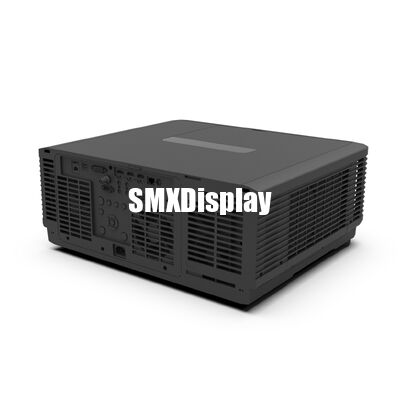

| I/O Terminal | ||
| Input | HDMI IN | *2 (HDMI 2.0) |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| 3G-SDI | *1(Optional) | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | HDMI OUT | *1 (HDMI 2.0) |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| DMX512 | *1 | |
| General Spec | ||
| Signal input parameter | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~120Hz | |
| Video signal input | up to 4K @ 60Hz | |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| ECO Standby Power | <0.5W | |
| Power Consumption (Normal) -Standard |
755W | |
| Temp.&Humidity | Operating Temp. | 5 to 45 ℃ |
| Operating altitude | Normal: 0~1700m Altitude: 1700~3650m |
|
| Operating Thumidity. | 20-80% | |
| Store Temp. | -10 to 50 ℃ | |
| Store Thumidity. | 20-80% | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
H/V keystone 4 Corner Correction Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-- AMX Discovery |
Yes | |
| LAN Control-- PJ Link |
Yes | |
| SW setting | Direct Power On | Yes |
| Signal Power On | Yes | |
| Auto Power Off | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic,Standard,Cinema, Colorboard,sim-DICOM | |
| Super Resolution | Yes | |
| D-Zoom(Magnify) | Yes (Max 4 times) | |
| Edge Blending | Yes | |
| Shutter/Blank | Yes | |
| High altitude | Auto/On/Off | |
| User Logo | Yes | |
| Others | 360° projection | Yes |
| Kensington lock | Yes | |
| Sealed design | Yes | |
| Filter-less design | Yes | |
| Real-time clock | Yes | |
| NFC | Yes | |
| PW presenter | Yes | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) |
490x510x205 | |
| Net. Weight (kg) | ~18.5 | |
| Packaging Size (WxDxH mm) |
800*740*440 | |
| Gross. Weight (kg) | ~28 | |
Optional Lenses
| PL Series optional Lens Spec | |||
| Model No. | MX-EP10ZL | MX-EP06ZL | MX-EP17ZL |
| F | 1.58-2.02 | 1.7~1.8 | 1.63~1.98 |
| f | 15.3mm-24.6mm | 9.66mm-11.65mm | 24.47mm-41.6mm |
| Image circle | 21.51mm | 22.2mm | 22.2mm |
| Zoom/Focus | Manual | Motorized | Manual |
| Throw Ratio | 1.08(wide) -1.78(tele) | 0.669(wide)-0.821(tele) | 1.74(wide)-2.97(tele) |
| Zoom Ratio | 1.6 | 1.21 | 1.7 |
| Screen size | 30-300 inch | 50-500inch | 50-500inch |
| Lens Shift | V:+45%~0% H:±21% |
V:+50%~0% H:±23% |
V:+50%~0% H:±23% |
| Weight(G) | 370 | 764 | ~764 |
