| Brand Name: | SMX |
| Model Number: | MX-STD5500UG |
| MOQ: | 1pc |
| Price: | 1580usd/pc |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/Monthly |
SMX Standard Throw Laser Projector WUXGA 5500 Lumens High Brightness For Business Use
The SMX MX-STD5500UG Laser Projector can bring immersive displays into the classroom, meeting room and beyond. Ideally suited to display interesting lessons, impressive presentations, striking signs, and more, the MX-STD5500UG provides stunning WUXGA and 5500 lumens of color and brightness. Designed for ease of use, it features flexible aspect ratios, an image size up to 300 inches, and a 20, 000-hour ultra long lifespan, virtually maintenance-free laser light source.
Key Features:
Application:
WUXGA Resolution
High Contrast
Key Correction
Laser Source Life Time
Specification
| Model No. | MX-STD5500UG | |
| Brightness | ||
| Brightness (Ansi Lumen) | 5500 | |
| Resolution | WUXGA | |
| Overall Spec | ||
| Light source Lifetime |
Light Source | Laser |
| Normal mode | 20000hrs | |
| ECO1 mode | 30000hrs(TBD) | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.5~2.08 | |
| f | 17.2~27.7mm | |
| Zoom/Focus | Manual | |
| Lens Shift | V: 0%~+35% | |
| Throw Ratio | 1.2~2.0:1 | |
| Zoom Ratio | 1.6x optics | |
| Screen size | 30-300 inch | |
| CR | Dynamic Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity | 80% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |

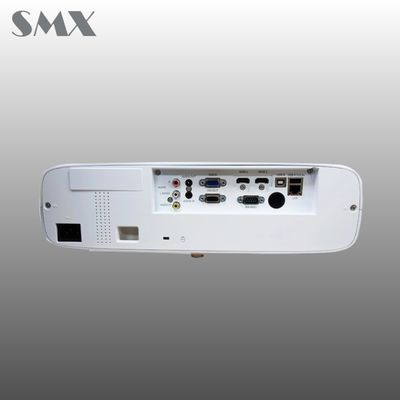

| Terminal(I/O port) | ||
| Input |
VGA, HDMI *2, Video, Audio in *2, USB-A, USB-B, RJ45 |
|
| Output | VGA, Audio out | |
| Control | RS232, RJ45, USB-B, LAN | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V: ±30° / H:±30° Pincushion / Barrel / 4 Corner / 6 Corner Geometry Correction / Grid Image Tune |
| LAN Control | LAN Control | Yes |
| SW Setting | Auto Setup | INPUT SEARCH, AUTO PC, Auto Keystone |
| Auto Ceiling | Yes | |
| 360° projection | Yes | |
| Dimension&Weight | ||
| Product (WxDxH mm) |
390*294*127 | |
| Net. Weight (KG) | 5 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord Remote control | |
