20000 Lumen Versatility 3D Mapping Projector For Large Venues

Brand Name:	SMX
Model Number:	MX-X20000U
MOQ:	1pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Document:

Brightness:

20,000 Lumen

Resolution:

WUXGA

Contrast:

5,000,000:1

Len Shift:

V：±65%， H: ±25%

360° Projection:

Supply Ability:

10000pcs/Monthly

Highlight:

Versatility 3D Mapping Projector

1920x1200 3D Mapping Projector

1920x1200 3d projection mapping equipment

Product Description

20000 Lumen Versatility 3D Mapping Projector For Large Venues

SMX MX-X20000U is a 20,000-lumen laser projector with WUXGA resolution that provides exceptional brightness, image quality, color accuracy, versatility, and longevity, making it a powerful and reliable solution for demanding projection needs in a wide range of settings.

20000 Lumen Versatility 3D Mapping Projector For Large Venues 0

Advantage

High Brightness: The 20,000 lumen brightness ensures exceptional visibility even in well-lit environments or for large screen sizes, making it suitable for auditoriums, large venues, and outdoor events.

Crisp Image Quality: With WUXGA resolution (1920 x 1200 pixels), the projector delivers sharp and detailed images with enhanced clarity, ideal for presentations, data visualization, and high-definition content.

Laser Light Source: The laser light source provides consistent brightness, color accuracy, and a longer lifespan compared to traditional lamp-based projectors, resulting in lower maintenance costs and reliable performance over time.

20000 Lumen Versatility 3D Mapping Projector For Large Venues 1

Wide Color Gamut: The projector can display a wide range of colors accurately, providing vibrant and true-to-life visuals for an immersive viewing experience.

Versatile Applications: The combination of high brightness and WUXGA resolution makes this projector suitable for various applications, including large-scale presentations, digital signage, educational environments, and immersive home cinema setups.

Flexible Installation

The projector supports 360° all-round projection, and the picture can be losslessly translated through the menu, and users can easily adjust the position of the projected image.

20000 Lumen Versatility 3D Mapping Projector For Large Venues 2

Keystone Correction

keystone correction is a valuable tool for ensuring a properly proportioned and distortion-free image when the projector cannot be placed directly in front of the screen at a perfect angle.

20000 Lumen Versatility 3D Mapping Projector For Large Venues 3

Len Shift

The projector features a lens shift function, enabling users to reposition the image without loss through the menu. The maximum vertical adjustment range is ±65%, while the maximum horizontal adjustment range is ±20%.

20000 Lumen Versatility 3D Mapping Projector For Large Venues 4

Main Specification

Model#	MX-X20000U
Brightness
	Brightness(Lumen)	20,000
Overall Spec
Panel	Display Panel	3x1.0"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Laser Lifetime	Normal mode	20000hrs
Laser Lifetime	ECO mode	30000hrs
Projection Lens (STD)	Len Model	MX-EG12ZLM
	Zoom/Focus	Motorized
	Throw Ratio (16:10)	1.24-2.01 @100inch
	F	1.8-2.24
	f	27.7-44.3mm
	Zoom Ratio	1.62
	Screen size	60-500 inch
	Lens Shift V	±65%
	Lens Shift H	±25%
CR	Contrast Ratio(Min)	3,000,000:1
Noise	Noise(dB)	Full:46db / Normal:44db / Eco1:43db / Eco2:42db
Uniformity	Uniformity	TYP:90%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	DVI-D	*1
	HD BaseT	*1
	Audio in(mini jack,3.5mm)	*1 (VGA/DVI-D share)
	DMX512	*1
Output	HDMI 1.4(OUT)	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord (3m, Black), Remote control

Lens

Model#		MX-EG05ZLM	MX-EG06ZLM	MX-EG08ZLM	MX-EG12ZLM	MX-EG20ZL	OL-EG39ZLM
Zoom/Focus		Motorized	Motorized	Motorized	Motorized	Motorized	Motorized
F#(Wide-Tele)		1.85-2.20	1.84-2.25	1.80-2.24	1.80-2.24	1.84-2.58	1.85-2.42(TBD)
f(mm)		12.0-14.6	14.4-19.1	19.0-27.6	27.7-44.3	43.8-86.0	86.8-163.5(TBD)
Throw Ratio (16:10)		0.53-0.65	0.65-0.87	0.86-1.25	1.24-2.01	1.98-3.95	3.95-7.50(TBD)
Zoom Ratio		1.23	1.34	1.45	1.62	1.99	1.90(TBD)
Lens shift	H	±20%	±20%	±25%	±25%	±25%	±25%
Lens shift	V	±50%	±55%	±65%	±65%	±65%	±65%

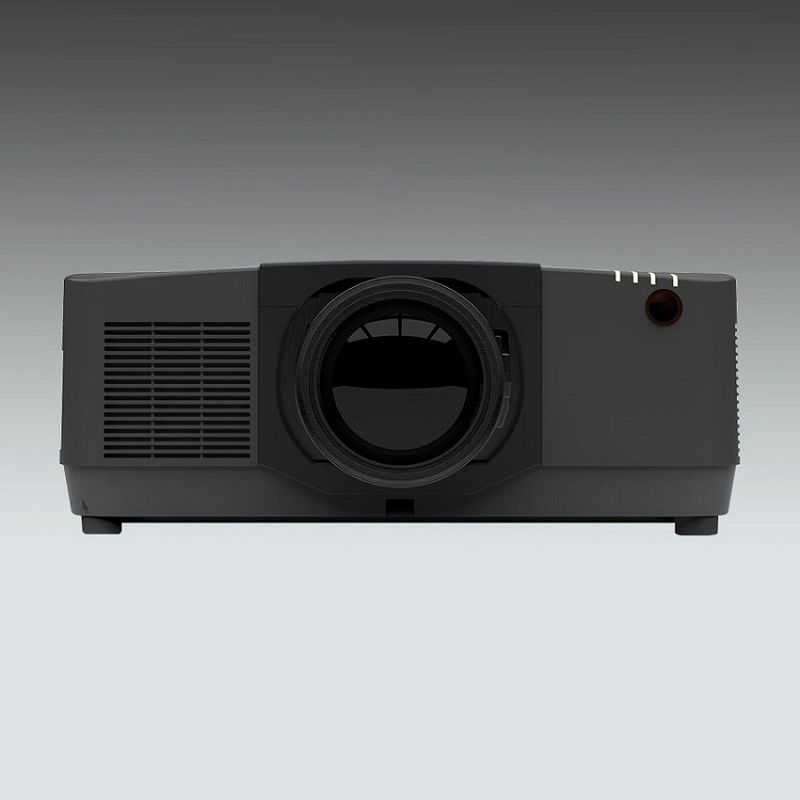

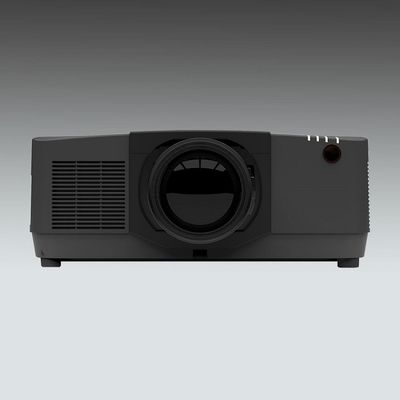

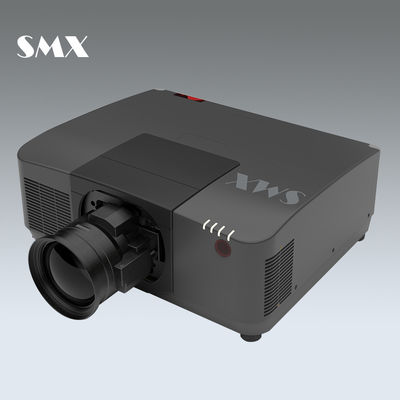

Product Details

20000 Lumen Versatility 3D Mapping Projector For Large Venues 5

20000 Lumen Versatility 3D Mapping Projector For Large Venues 6

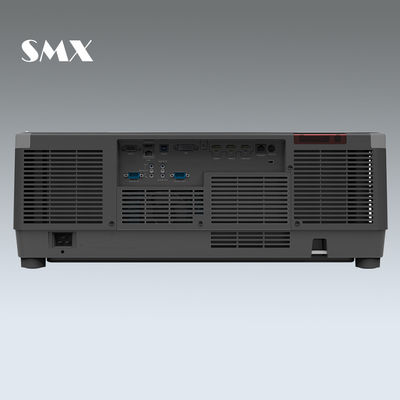

Ports:

20000 Lumen Versatility 3D Mapping Projector For Large Venues 7
