products details

Home > Products >

Large Venue Projector

12000 Lumen Professional Large Venue Laser Projector Mapping Projection

All Category

3D Projection Mapping Projector

Immersive Projection Projector

DLP Laser Projector

Miss. May Wei

may@smxdisplay.com

+86 18923801593

+86 18923801593

Contact Now

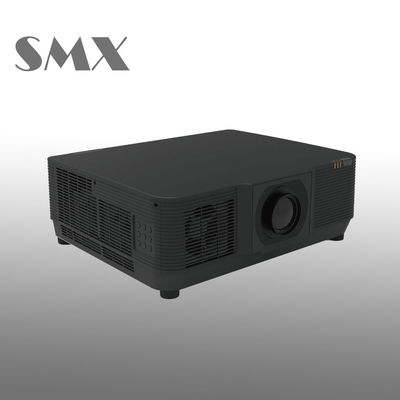

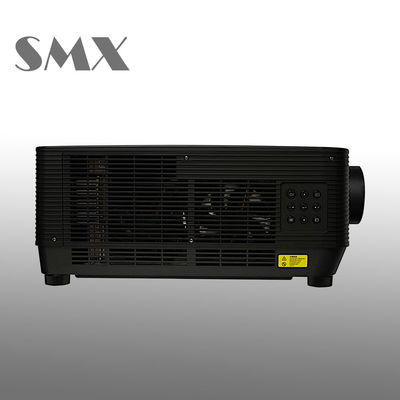

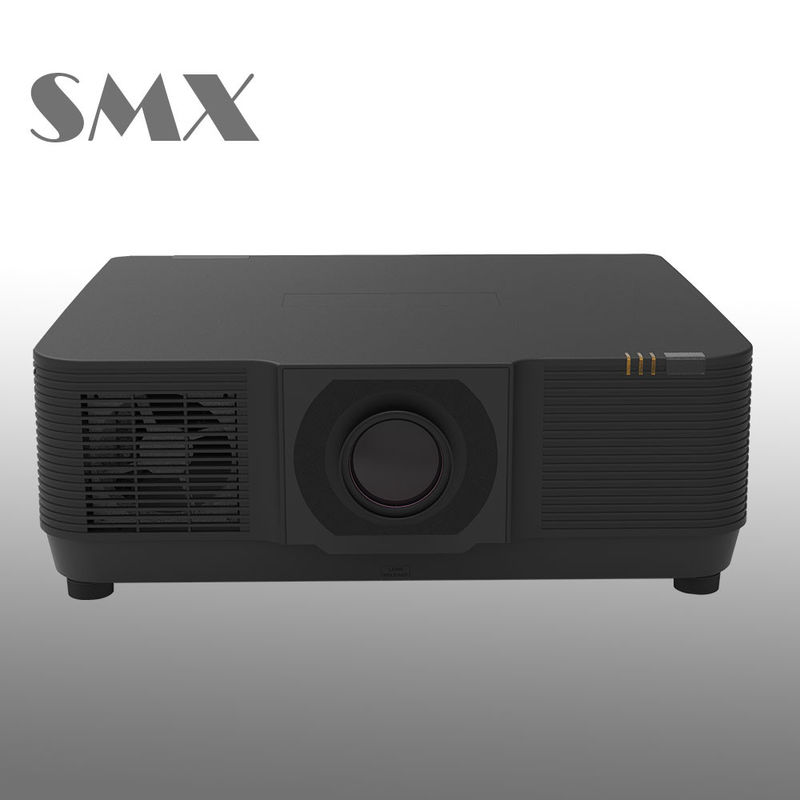

12000 Lumen Professional Large Venue Laser Projector Mapping Projection

Brand Name:	SMX
Model Number:	MX-X12000U
MOQ:	1pc
Price:	8950usd/pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Document:

Product Name:

Laser Projector

Birghtness:

12000 Lumen

Contrast:

100000:1

Display Technology:

Light Source:

Laser

Len Shift:

V: +50%，-10% / V: ±20%

Control:

Remote

Supply Ability:

10000pcs/Monthly

Highlight:

WUXGA Resolution Large Venue Laser Projector

Professional Large Venue Laser Projector

Product Description

12000 Lumen Professional Large Venue Laser Projector Mapping Projection

Thank you for purchasing this projector. This product is a laser LCD engineering projector, which adopts a new generation of LCD light source technology. The maximum brightness can reach 9500lm brightness and a long life of up to 20,000 hours to maintain a bright display.It avoids the radiation of light to the human body, and can completely solve the interference of shadows on the screen. It adopts liquid crystal display (LCD) technology with a color depth of 1.07 billion colors.

Key Features:

High brightness (12000 lumens)and contrast(100000:1)
3LCD Display Technology
Laser Light Source
20000 hours or real-time, 30000 hours for ECO mode
360° Projection
Zoom & Focus & Len shift Function
Up to 500" super big screen
7 optional projection lenses
Flexible installation

12000 Lumen Professional Large Venue Laser Projector Mapping Projection 0

Laser Light Source

Projectors with laser light sources provide several benefits including enhanced image quality, durability, and energy efficiency, making them a popular choice for various professional and entertainment applications.

12000 Lumen Professional Large Venue Laser Projector Mapping Projection 1

Flexible Installation Options with 360° projection, Len Shift, and Keystone Correction

Designed for versatility, this projector offers compatibility with different lenses and mounting options, allowing you to customize the setup to meet your specific requirements and venue constraints.

12000 Lumen Professional Large Venue Laser Projector Mapping Projection 2

Len shift:

12000 Lumen Professional Large Venue Laser Projector Mapping Projection 3

Keystone Correction:

12000 Lumen Professional Large Venue Laser Projector Mapping Projection 4

Specification

Model No.	MX-X12000U
Brightness
	Brightness ( Ansi Lumens )	12000lumen
	Light source	Laser
Overall Spec
Panel	Display Panel	3x0.76"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Lifetime	Normal mode	20000hrs
Light source Lifetime	ECO mode	20000hrs
Projection Lens	Len Type	Zoom Lens
	Zoom/Focus	Manual(Standard Len)
	Throw Ratio(16:10)	1.46-2.95
	F#(Wide-Tele)	1.7~2.37
	f(mm)	24.4-48.6
	Zoom Ratio	2
	Weight	Approx 0.8kg
	Lens Shift V	+50%,-10%
	Lens Shift H	±20%
CR	Contrast Ratio(Min)	100000:1
Noise	Noise(dB)	Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1 (5V/1.5A)
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	DVI-D	*1
	HD BaseT	*1
	HD-SDI(3G-SDI)	Optional
	Audio in (mini jack,3.5mm)	*1 (VGA/DVI-D share)
Output	VGA	*1
	HDMI 1.4(OUT)	*1
	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others	360° projection	360° Omni bearing installation
Others	Edge Blending	Yes
Dimension&Weight
	MAX Dimensions (WxHxD mm)	600218503
	Net. Weight (KG)	~25kg
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord(3m,Black), Remote control

Lenses

12000 Lumen Professional Large Venue Laser Projector Mapping Projection 5

Product Details

12000 Lumen Professional Large Venue Laser Projector Mapping Projection 6

12000 Lumen Professional Large Venue Laser Projector Mapping Projection 7

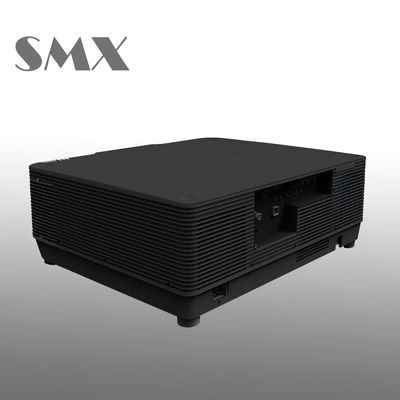

Ports
