3D Projection Mapping Projector

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection

All Category

3D Projection Mapping Projector

Immersive Projection Projector

DLP Laser Projector

Miss. May Wei

may@smxdisplay.com

+86 18923801593

+86 18923801593

Contact Now

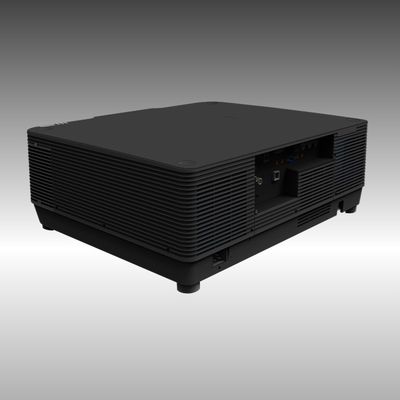

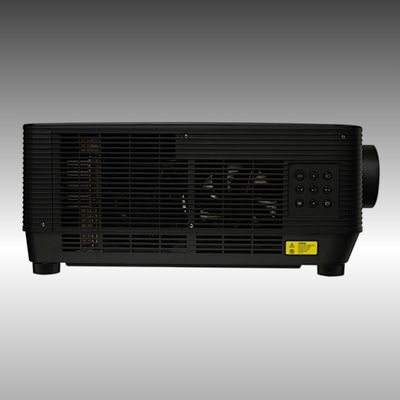

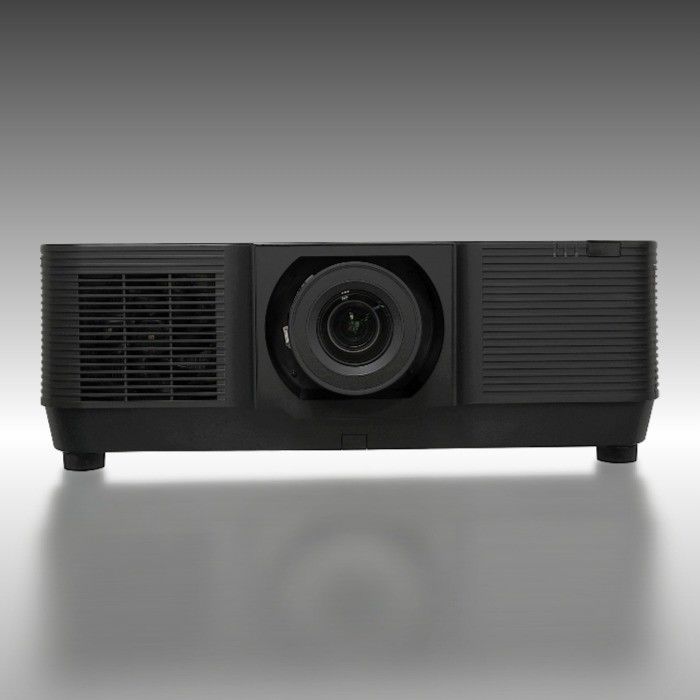

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection

Brand Name:	SMX
Model Number:	MX-X15000U
MOQ:	1pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE

Product Name:

3D Mapping Laser Projector

Birghtness:

1,5000 Lumen

Dynamic Contrast Ratio:

100,000:1

Display Type:

Projection Light Source:

Laser

Light Source Lifespan:

20,000 Hours

Native Resolution:

WUXGA (1920*1200)

Len Type:

Zoom Lens

Throw Ratio:

1.46-2.95

Zoom Ratio:

Zoom/Focus:

Manual

Lens Shift:

V: -10%~+50% , H: ±20%

Projection Size:

40-500 Inch

Aspect Ratio:

16:10

Keystone Correction:

V: ±30°, H: ±30°, 4 Corner, 6 Corner

Edge Blending:

Supply Ability:

10000pcs/Monthly

Highlight:

High Brightness Laser Projector

High Performance Laser Projector

15000 Lumen Laser Projector

Product Description

High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 0

Key Features:

15,000 Lumen High Brightness
WUXGA (1920*1200) native resolution
Multi-interface, dual HDMI
Installation flexibility advanced keystone correction
20,000 Hours ultra-long life laser light source
100000:1 High contrast
360° Projection
Support edge blending
Support 4K signal input

Application Area:

Large Venue Projection
Immersive Experience
Hologram Projection
3D Mapping & Buliding Projection
Planetarium&Museum

Lens Shift

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 1

360° Projection

WUXGA Resolution

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 3

High Contrast

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 4

Edge Blending

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 5

Motorized Zoom and Focus

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 6

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 7

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 8

Specification

Model No.	MX-X15000U
Brightness
	Brightness ( Ansi Lumens )	15000lumen
	Light source	Laser
Overall Spec
Panel	Display Panel	3x0.76"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Lifetime	Normal mode	20000hrs
Light source Lifetime	ECO mode	20000hrs
Projection Lens	Len Type	Zoom Lens
	Zoom/Focus	Manual(Standard Len)
	Throw Ratio(16:10)	1.46-2.95
	F#(Wide-Tele)	1.7~2.37
	f(mm)	24.4-48.6
	Zoom Ratio	2
	Weight	Approx 0.8kg
	Lens Shift V	+50%,-10%
	Lens Shift H	±20%
CR	Contrast Ratio(Min)	100000:1
Noise	Noise(dB)	Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal

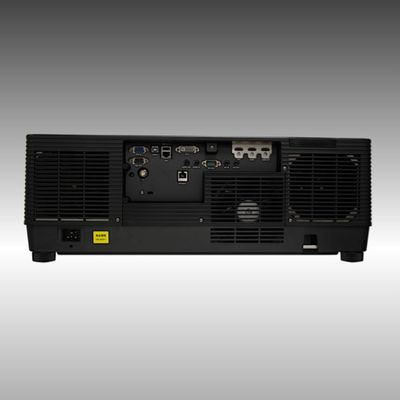

Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1 (5V/1.5A)
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	DVI-D	*1
	HD BaseT	*1
	HD-SDI(3G-SDI)	Optional
	Audio in (mini jack,3.5mm)	*1 (VGA/DVI-D share)
Output	VGA	*1
	HDMI 1.4(OUT)	*1
	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Other Functions
Keystone	Keystone Correction	V: ±30° H: ±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-AMX Discovery	Yes
	LAN Control-PJ Link	Yes
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others	360° projection	360° Omni bearing installation
Others	Edge Blending	Yes
Dimension&Weight
	MAX Dimensions (WxHxD mm)	600218503
	Net. Weight (KG)	~25kg
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord(3m,Black), Remote control

15K Lumen Laser Projector High Performance High Brightness 15000 Lumen For Large Venue 3D Mapping Immersive Projection 9
