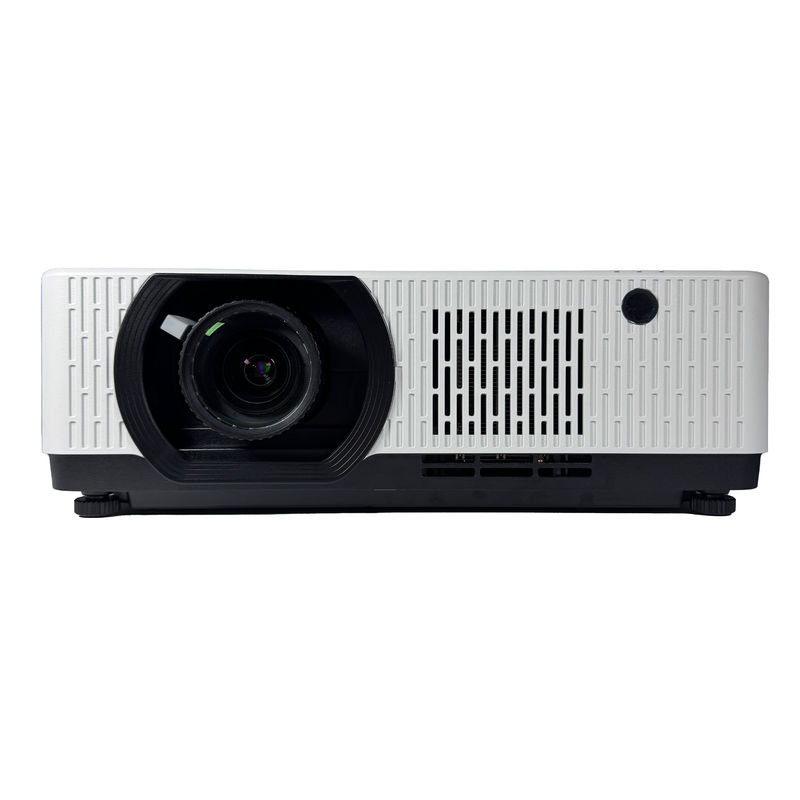

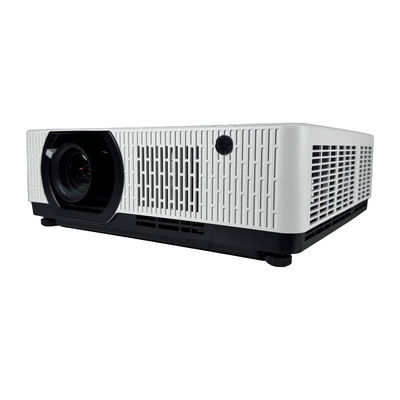

High Brightness 7800 Lumen Projector WUXGA Resolution 4K Compatibility 500K 1 Dynamic Contrast

Brand Name:	SMX
Model Number:	MX-VL780U
MOQ:	1
Price:	USD 2680/PC
Packaging Details:	19.37x17.44x9.4 inch with carton
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS

Light Source:

Laser Light

Life Time:

20000Hrs

Business & Education, Home

Technology:

Laser

Picture Size:

30-300 Inch

Throw Ratio:

1.08 (wide)-1.76 (tele)

Standby Mode:

Normal/ECO

Dimensions:

15.9 X 14 X 5.4 Inches

Lens:

Manual Focus

Len Shift:

V:＋45%～0%、 H:±21%

Dynamic Contrast Ratio:

5,000,000:1

Supply Ability:

10000 PCS/month

Highlight:

High Brightness 7800 Lumen Projector

4K 7800 Lumen Projector

High Brightness WUXGA Projector

Product Description

Description

Unleash ultra-bright 7800-lumen performance combined with WUXGA precision and 4K compatibility. Whether for boardroom presentations or home theaters, the 500,000:1 dynamic contrast ratio brings out every shadow and highlight. Effortlessly project crisp, vivid imagery up to 300" – ideal for outdoor screenings, classrooms, or immersive cinematic experiences.

High Brightness 7800 Lumen Projector WUXGA Resolution 4K Compatibility 500K 1 Dynamic Contrast 0

Specifications

Key parts
	Model No.	MX-VL780U
	Brightness(Lumen)	7800
	Resolution	WUXGA
	Light source	NICHIA LASER
Overall Spec
Panel	Display Panel	3x0.64" with MLA
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Life time	Full Normal/Normal mode	20000hrs
	ECO1 mode	30000hrs
	ECO2 mode	30000hrs
Projection Lens	F	1.58-2.02
	f	15.3mm-24.6mm
	Zoom/Focus	Manual
	Throw Ratio	1.08 (wide)-1.76 (tele)
	Zoom Ratio	1.6
	Screen size	30-300 inch
	Lens Shift	V:＋45%～0%, H:±21%
CR	Contrast Ratio (FOFO)	5000000:1
Noise	Noise(dB) *1	39dB(Normal) 31dB(ECO1) 29dB(ECO2)
Uniformity	Uniformity(Actual Min) -JISX6911	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9

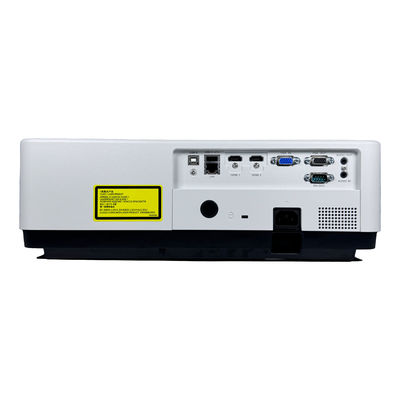

Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4B(IN)	*2
	USB-A	*1
	USB-B	*1 (Display)
	RJ45	*1 (Display)
	HD BaseT	*1(Optional)
	Audio in (mini jack,3.5mm)	*1
Output	VGA	*1
Output	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
General Spec
Audio	Speaker	16W*1
Dust filter		W/Filter
Filter Life time		8000h
Power Consumption	Power Requeirements	100~240V@ 50/60Hz
	Power Consumption (Normal) (Max)	425
	Power Consumption (ECO1) (Max)	285
	Power Consumption (ECO2) (Max)	235
	ECO Standby Mode Power Consumption	<0.5W
Temp.&Humidity	Operating Temp.	0m≤Altitude≤1700m, Ambient 0°C~50°C
	Operating Temp.	1700m＜Altitude＜3000m, Ambient 0°C~40°C
	Operating humidity.	20-85%
	Store Temp.	-10 to 50°C
	High altitude	0~3000m
Other Functions
Keystone	Keystone Correction (Lens@center)	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction 4 Corner Correction Grid image tune
OSD	Languages	26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control--AMX Discovery	Yes
	LAN Control--PJ Link	Yes
Scanning Frequency	H-Synch Range	15~100KHz
Scanning Frequency	V-Synch Range	24~85Hz
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Display Resolution	Video Signal Input	480i, 480p, 576i, 576p, 720p, 1080i and 1080p
SW setting	Auto Setup	INPUT SEARCH,AUTO PC,Auto Keystone
	Blank	Yes
	Suspend	Yes(5 minutes no signal as default)
	Picture mode	Dynamic,Standard,Cinema, Colorboard,sim-DICOM,Blackboard(Green)
	Cooling time	0s,normal,30s
	Closed caption	N/A
	Auto Ceiling	Yes
	D-Zoom	1~33
Others	360° projection	Yes
Others	Edge Blending	Yes
Dimension&Weight
	Product Size (mm)	405 (W)358(D)137(H)
	Net. Weight (KG)	~7.9KG
	Packaging Size(mm)	510 (W)498(D)260(H)
	Gross. Weight (KG)	~10.4KG
Accessory
	Manual Languages	Chinese,English
	Standard Accessaries	Power cord, HDMI cable,Remote control
