7200 Lumen 4K LCD Laser Projector with HDR10 Support

Brand Name:	SMX
Model Number:	MX-LK7200K
MOQ:	1Pc
Price:	3620usd/pc
Packaging Details:	Carton Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO，CE，RoHS

Product Name:

4K LCD Laser Projector

Display Type:

Liquid Crystal Display

Brightness-lumen:

Native Resolution:

Light Source:

Laser

Light Source Lifespan:

20000 Hours

Dynamic Contrast:

5,000,000:1

Throw Ratio:

1.2(wide) - 2.0(tele)

Projection Size:

30''-300''

Aspect Ratio:

16:10

Audio:

Speaker 16W*1

Zoom Ratio:

Language:

Chinese, English

HDR10:

Support

Keystone:

V: ±30° / H：±25° / 4 Corner Correction

Bluetooth:

Bluetooth Version 5.0

360° Free Viewing:

Support

Standby Mode:

Energy-efficient

Supply Ability:

100000pcs/monthly

Highlight:

7200 lumen 4K laser projector

4K LCD projector with HDR10

laser projector with 20000h lifespan

Product Description

7200 Lumen 3840x2160 resolution 4K Laser Projection Mapping Projector

Attribute	Value
Product Name	4K LCD Laser Projector
Display Type	Liquid Crystal Display
Brightness-lumen	7200
Native Resolution	4K
Light Source	Laser
Light Source Lifespan	20000 hours
Dynamic Contrast	5,000,000:1
Throw Ratio	1.2(wide) - 2.0(tele)
Projection Size	30''-300''
Aspect Ratio	16:10
Audio	Speaker 16W*1
Zoom Ratio	1.6
Language	Chinese, English
HDR10	Support
Keystone	V: ±30° / H：±25° / 4 Corner Correction
Bluetooth	Bluetooth Version 5.0
360° free viewing	Support
Standby mode	Energy-efficient

Product Overview

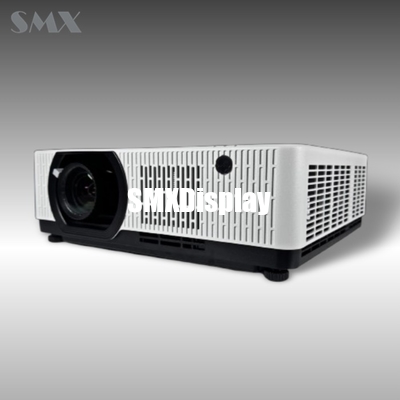

SMX 7200 Lumen 4K HDR10 3LCD Laser Projector MX-LK7200K

The SMX MX-LK7200K is a LCD laser projector with 7,200 lumen and 5,000,000:1 contrast ratio, which is equipped with advanced installation features, 4K native resolution and HDR10. The SMX MX-LK7200K is powered by a virtually maintenance-free, 20,000 hour laser light source with no lamps to replace and features a built-in speaker and bluetooth. Supporting 360° projection and portrait installation, it can achieve all day operation, greatly improve durability, and is suitable for a variety of applications. This projector can achieve clearer and more vivid image effects, suitable for high-end home theater and professional use. The long life and stability of MX-LK7200K projector make them very suitable for high-frequency use environments such as education, business meetings and entertainment venues.

Key Features:

7,200 Lumens
4K Ultra High Native Resolution
20,000 Hours Laser Light Source
5,000,000:1 Contrast Ratio
HDR10 Support
Up to 300'' Big Screen
Flexible Installation
Advanced Keystone Correction
1.6x Optical Zoom & Lens Shift Function

Applications:

Large-venue
High-end Home Theater
Immersive Room
House Projection
Hologram Projection
Exhibition & Museum

4K Native Resolution

The SMX MX-LK7200K projector provides over four times the resolution of 1080p full HD projectors. The detail and clarity SMX 4K projector can project is stunning. This model can take your viewing experience to new heights.

5,000,000:1 High Contrast

In bright environments, high contrast helps offset interference from ambient light, maintaining image clarity and visibility.

Lens Shift Function

Lens shift is an important feature that provides flexibility and convenience to help users optimize projection effects in various environments, ensuring correct alignment and high-quality display of images.

20,000 Hours Long Lifespan

The laser light source is designed to have a service life of up to 20,000 hours. There is no need to replace the light source, which reduces maintenance workload, costs, and the burden on the environment. It is very suitable for environments with high frequency of use.

360° Projection

In 360° free projection, the projector can be adjusted up or down according to the installation environment, and can be side-mounted to create portrait images.

Installation Flexibility

It uses a 1.6x zoom lens, and the wide lens shift range supports projection at different angles, heights and projection distances, while the 6-angle correction function allows projection to be placed in a variety of installation environments, even in the corners of the room without distortion.

Technical Specifications

Model No.		MX-LK7200K
Brightness		7200Lumen
Overall Spec	Panel	3x0.64" with MLA
	Display Technology	Liquid Crystal Display
	Resolution	4K Enhancement
	Light source Lifetime	Normal mode: 20000hrs ECO mode: 30000hrs
Projection Lens	Lens Vendor	RICOH Lens
	F	1.5~2.08
	f	17.2~27.7mm
	Zoom/Focus	Manual
	Throw Ratio	1.2(wide)-2.0(tele)
	Zoom Ratio	1.6
Screen size		30-300 inch
Lens Shift		V:+0%~66% / H:±29%
Contrast Ratio		5000000:1
Noise(dB)		38dB(Normal) / 30dB(ECO1) / 28dB(ECO2)
Uniformity-JBMA		80%
Aspect Ratio		Compatible: 4:3/16:10

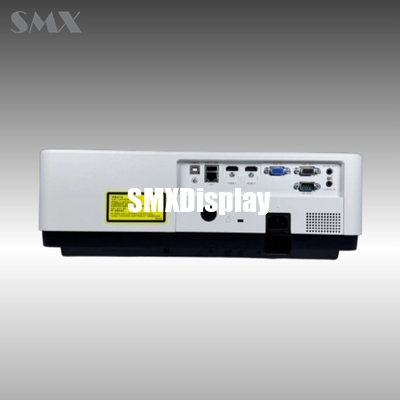

Terminal(I/O port)	Input	HDMI 2.1(IN): 2 USB-A: 2 RJ45: 1 HD BaseT: 1(Optional) RS232C: *1
	Output	Audio port: S/PDIF1 Audio out (mini jack,3.5mm): 1
	Control	RJ45: *1 (Control)
	General Spec	Speaker: 16W*1
		Dust filter: W/Filter
		Filter Lifetime: 8000h
		Power Requirements: 100~240V@ 50/60Hz Power Consumption (Normal) (Max): 435 Power Consumption (ECO)(Max): 240 ECO Standby Mode Power Consumption: <0.5W
Operating Temp.		0 to 40°C
Operating Thumidity.		20-85%
Store Temp.		-10 to 50°C
High altitude		0~3000m
Other Functions	Keystone	Keystone Correction (Lens@center): V: ±30° H:±25° 4 Corner Correction
	OSD	Languages: English, Chinese
	LAN Control	LAN Control-- PJ Link: Yes
	Scanning Frequency	H-Synch Range: 15~100KHz V-Synch Range: 24~85Hz
	Display Resolution	Video Signal Input: up to 3840x2160/60Hz
	SW Setting	Voice control: Near-field RC voice
	Bluetooth	Bluetooth Version 5.0
	lamp mode	Normal/ECO
	Light source brightness	50-100%
	High altitude	Yes
	Auto Ceiling	Yes
	HDR10	Support
360° free viewing		Support
Standby mode		Energy-efficient
MAX Dimensions (WxDxH mm)		405 (W)358(D)137(H)
Net. Weight (KG)		~7.9KG
Manual Languages		Chinese, English
Standard Accessories		Power Cord, Remote control
