UST Laser Projector

High Performance 360° Projection WXGA UST Laser Projector With 5000 Lumens Brightness

All Category

3D Projection Mapping Projector

Immersive Projection Projector

DLP Laser Projector

Miss. May Wei

may@smxdisplay.com

+86 18923801593

+86 18923801593

Contact Now

High Performance 360° Projection WXGA UST Laser Projector With 5000 Lumens Brightness

Brand Name:	SMX
Model Number:	MX-WPL500W
MOQ:	1pc
Price:	1580usd/pc
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE,RoHS

Document:

Product Name:

UST Laser Projector

Brightness:

5000 Lumens

Throw Ratio:

0.235:1

Resolution:

Light Source:

Laser

Built-In Speakers:

Contrast Ratio:

5,000,000:1

Supply Ability:

10000pcs/Monthly

Highlight:

High Performance UST Laser Projector

High Performance ust projector 4k

360° Projection UST Laser Projector

Product Description

SMX Brightness high-lumen 5000-lumen Ultra Short Throw Laser Projector WXGA

MX MX-WPL500W

Brightness: 5000 lumen
Brightness: WUXGA
Throw Ratio: 0.235:1
Contrast: 5,000,000:1
Light Source: Laser Projection

Ultra Short Throw (UST): UST projectors can be placed close to the screen, minimizing shadows and creating a more immersive viewing experience, especially in smaller spaces.

Brightness: The high lumen count (5000 lumens) ensures bright and vivid images even in well-lit rooms, allowing for a clear and sharp viewing experience.

Energy Efficiency: Laser projectors are more energy-efficient compared to lamp-based projectors, potentially leading to lower energy consumption and operating costs over time.

Laser projectors typically have instant on/off capabilities, allowing for quick setup and shutdown without waiting for the lamp to warm up or cool down.

Quiet Operation: Laser projectors tend to operate more quietly than traditional lamp-based projectors, reducing distractions during movie playback.

Model No.	MX-WPL500W
Brightness
	Lumen	5000
Overall Spec
Panel	Display Panel	3x0.63" with MLA
	Display Technology	Liquid Crystal Display
	Native Resolution	WXGA(1280x800)
Light source Lifetime	Normal mode	20000hrs
Light source Lifetime	ECO2 mode	30000hrs
Projection Lens	F	F1.7
	f	2.94mm
	Lens Vendor	RICOH
	Zoom/Focus	Manual
	Throw Ratio	0.235:1
	Screen size	80-150"
CR	Contrast Ratio	5000000:1
AR	Aspect Ratio	Native:4:3 Compatible: 16:9
Terminal(I/O port)
Input	VGA	VGA1,HDMI2,USB-A,USB-B1,RJ451, Audio in1
Output	VGA	VGA1 ,Audio out1
Control	RS232	RS2321,RJ451,USB-B *1
General Spec
Audio	Speaker	16W*1
Other Functions
Keystone	Keystone Correction (Lens@center)	V: ±5° H:±5° Pincushion/Barrel Correction 6 Corner Geometry correction Grid image tune
LAN Control	LAN Control-RoomView (Crestron)	Yes
	LAN Control-- AMX Discovery	Yes
	LAN Control-- PJ Link	Yes
Display Resolution	Computer Signal Input	VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Display Resolution	Video Signal Input	480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Others	360° projection	Yes
Dimension&Weight
	Product Size (WxHxD mm)	520x435x168
	Net. Weight (KG)	11
Accessory
	Manual Languages	Chinese, English
	Standard Accessories	Power cord, Remote control

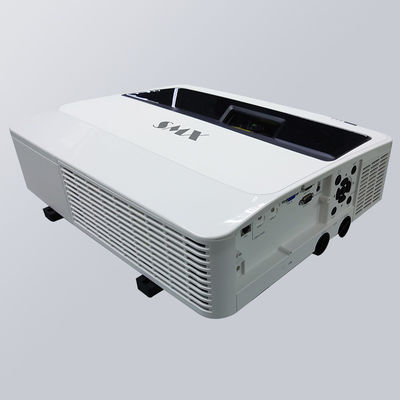

High Performance 360° Projection WXGA UST Laser Projector With 5000 Lumens Brightness 0

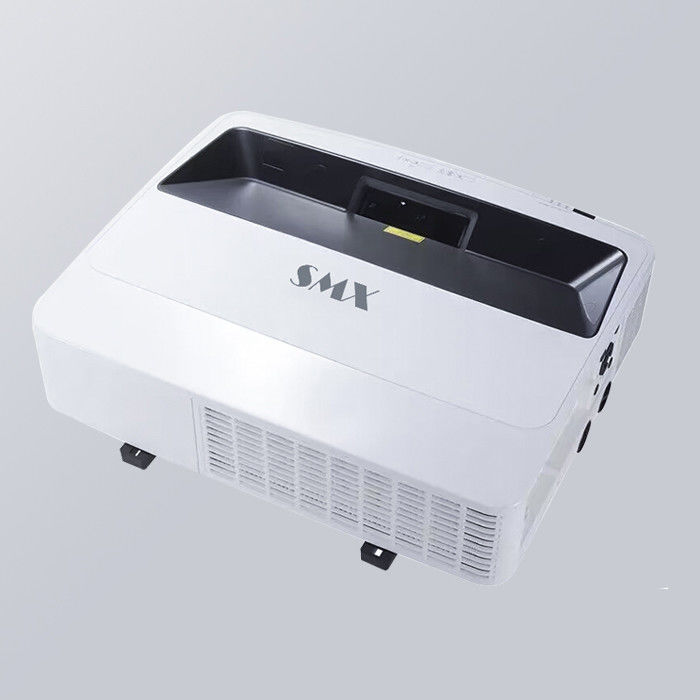

High Performance 360° Projection WXGA UST Laser Projector With 5000 Lumens Brightness 1
