| Brand Name: | SMX |
| Model Number: | MX-DL820U |
| MOQ: | 1 |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 10000 pcs/monthly |

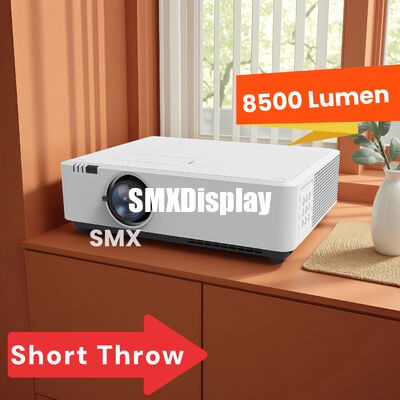

The MX-DL850ST is engineered for the professional environment, delivering stunning, high-brightness visuals and seamless integration to make every presentation, video conference, and data review more impactful and efficient.
Key Specifications:
Engineered for the Demanding Conference Room:
Brilliance in Any Light: With 8,500 laser-delivered lumens, presentations stay vibrant, charts are sharply defined, and video content remains vivid, even with the lights on or shades open. Ensure that every participant can see critical details without compromise.
Space-Saving Short Throw Design: Position the projector close to the wall or screen to project a large image, minimizing shadows from the presenter and reducing glare. This design enables you to optimize your room layout, eliminating the need for obstructive ceiling mounts and providing a cleaner, more flexible installation.
Pin-Sharp Full Resolution Clarity: Present spreadsheets, fine text, intricate designs, and 4K video content with absolute precision. Every pixel is rendered with stunning detail, ensuring that your most complex information is communicated with crystal clarity.
Professional Installation Flexibility: The motorized lens shift enables perfect and effortless image alignment during installation, without compromising image quality. Achieve the ideal screen fit from a variety of mounting positions quickly and accurately.
Exceptional Image Depth: The impressive 5,000,000:1 contrast ratio provides deep blacks and bright whites, giving charts, text, and graphics remarkable depth and dimensionality, which improves readability and visual impact.
Integrated Audio for Clarity: The built-in 10W speaker delivers clear and ample sound for video conferencing, training videos, and presentation audio, eliminating the need for external speakers in standard meeting spaces.
Built for Reliability and Ease:
Ideal for:
Specification
| Key Parts | ||
| Model No. | MX-DL850ST | |
| Resolution | 1080P | |
| Brightness(Ansi Lumen) | 8500 | |
| Overall Spec | ||
| Panel | Display Panel | 0.65" DMD |
| Display Technology | DLP | |
| Native Resolution | 1080P (1920 x 1080) | |
| Light source Life time | Normal mode | 20,000hrs |
| ECO1 mode | 30,000hrs | |
| Projection Lens | F | 2.4 |
| f | 9.66mm-11.65mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.647(wide)~0.782(tele) | |
| Zoom Ratio | 1.2 | |
| Screen size | 80-300inch | |
| Lens Shift | V:＋42%～-10%, H:±8% | |
| CR | Contrast Ratio | 5,000,000:1 |
| Noise | Noise(dB) | 39dB(Normal) 36dB(ECO) |
| Uniformity | Uniformity | 95% |
| AR | Aspect Ratio | Native:16:9 Compatible: 4:3/16:10 |

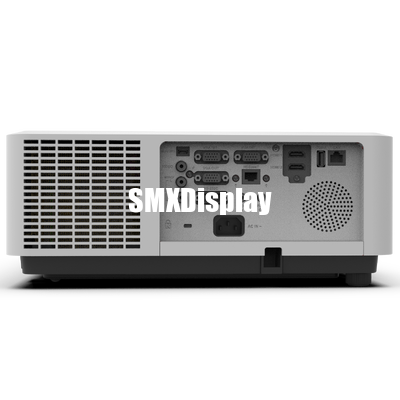

| Terminal(I/O port) | ||
| Input | VGA | *2 |
| HDMI 1.4B(IN) | *2 | |
| HD BaseT | *1(Optional) | |
| Video | *1 | |
| Audio L (RCA) | *1 | |
| Audio R (RCA) | *1 | |
| Audio in (mini jack,3.5mm) |
*1 | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 (For upgrade) | |
| USB (Type A) only supports 5V | *1 | |
| General Spec | ||
| Audio | Speaker | 10W*1 |
| Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) |
670 | |
| Power Consumption (ECO1) (Max) |
520 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0m≤Altitude≤1700m, Ambient0℃~50℃ |
| 1700m＜Altitude＜3000m, Ambient 0℃~40℃ | ||
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) |
V:±30° 4 Corner Correction |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery | Yes | |
| LAN Control-- PJ Link | Yes | |
| Others | 360° projection | Yes |
| 3D | Yes | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 460(W)*355(D)*142.6(H) | |
| Net. Weight (KG) | ~10KG | |
| Packaging Size (WxDxH mm) |
574(W)*554(D)*268(H) | |
| Gross. Weight (KG) | 12.5kg | |
| Accessory | ||
| Standard Accessories | Power cord, HDMI cable Remote control | |
Projection Distance
